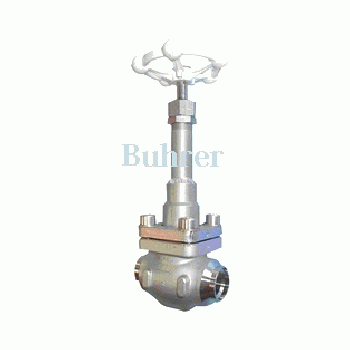

Product name: Imported cryogenic globe valve Product model:
Buhrer
Drive method: manual Connection form: welding, flange
Structure: straight-through Seal structure: PTFE, hard seal
Pressure range: 150LB-2500LB Nominal dia
meter: DN6-300
Common materials: low temperature steel, 304, 316, 316L, alloy steel, etc.
Product introduction
The imported low-temperature shut-off valve produced by Breer can be driven manually, welded, flanged, straight-through structured, sealed with PTFE, hard seal, pressure range PN150LB-2500LB, nominal dia
meter is DN6-300mm, the material can choose low temperature steel, 304,316,316L, alloy steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
Imported low-temperature shut-off valve-
Buhrer brand production has formulated strict manufacturing processes and uses special equipment to carry out strict quality control on the processing of parts. After special low temperature treatment, the rough parts are placed in the cooling medium for several hours (6-12 hours) to release the stress, ensure the low temperature performance of the material, and ensure the finished size. Leakage due to deformation due to temperature changes. The valve assembly is also different from ordinary valves. Parts need to be strictly cleaned to remove any oil stains to ensure performance.
Technical specifications of imported cryogenic globe valve:
Size: DN6-DN300
Pressure rating: 150LB-2500LB
Interface form: thread, butt welding, socket welding, flange, etc.
Applicable temperature: -110 ℃ -220 ℃
Common working conditions: liquid oxygen, liquid nitrogen, liquefied natural gas, liquefied hydrocarbon, etc., fire safety design
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
