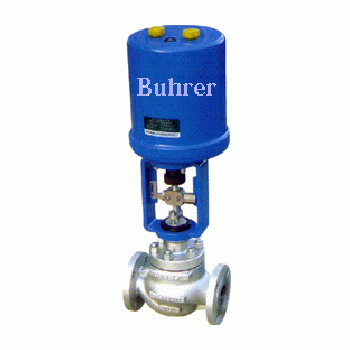

Product name: Imported electric regulating valve Product model:
Buhrer
Drive method: electric, pneumatic Connection: flange, welding
Structure: Balanced Seal structure: PTFE, PPL, hard seal
Pressure range: 150-2500LB Nominal dia
meter: DN15-500
Common materials: WCB, 304, 316, alloy steel, etc.
Product introduction
The imported electric regulating valve produced by Breer can be driven by electric or pneumatic. The connection method can be flanged, welded, the structure can be balanced, the sealing structure can be PTFE, PPL, hard seal, pressure range PN150-2500LB The nominal dia
meter is DN15-500mm, and the materials can be WCB, 304, 316, alloy steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
American
Buhrer brand imported electric control valve-Overview:
The electric cage type single seated regulating valve is suitable for occasions where high pressure difference is easy to cause flash cavitation. Compact, with S streamlined channel, it has small pressure drop loss, large flow and wide adjustable range. The valve core has a large guiding area and good vibration resistance. The leakage of the regulating valve conforms to ANSI B16.104 standard.
Standard Specification of Control Valve:
Nominal dia
meter: DN15 ~ 500
Nominal pressure: ANSI 125LB ~ 2500LB
Connection form: flange, welding
Applicable temperature: -196 ～ 880 ℃
Main performance of regulating valve:
Leakage:
Metal seat: less than 0.01% of the rated capacity of the valve, in accordance with ANSI B16.104 Class IV.
Back difference: 1% for VCONTORQUE actuator
Basic error: ± 1% with VCONTORQUE actuator
Remarks: Use standard V-type PTFE packing
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
