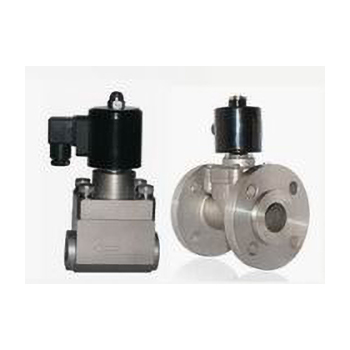

Product name: Imported high pressure solenoid valve Product model: Buhrer series
Drive method: Electromagnetic Connection form: Thread, flange
Structure: Piston type, Pilot type, Direct acting Seal structure: Soft seal, Hard seal
Pressure range: 1.6-100MPa Nominal diameter: DN1-500
Common materials: stainless steel, 304, 316, titanium alloy steel, etc.
Product introduction
The imported high-pressure solenoid valve produced by Breyer can be driven by solenoid, connected by thread, flange, and piston type, pilot-operated, direct-acting type. Soft seal, hard seal, and pressure range can be used as the sealing structure. PN1.6-100MPa, nominal diameter is DN1-500mm, stainless steel, 304,316, titanium alloy steel, etc. can be selected as materials. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
Imported high-pressure solenoid valve-A series of imported solenoid valves of the American Buhrer brand are widely used in aerospace, shipbuilding, petrochemical, water supply and drainage, fire fighting equipment, food and medical equipment, cleaning equipment, landscape irrigation, humidification equipment, hydraulic equipment, testing equipment, water Factories, etc., working pressure in the pipeline system of 1.6-100MPa.

Features of imported high pressure solenoid valve:
The valve core is stainless steel piston type, the piston ring will not be jammed by impurities in the medium, high dynamic sealing performance, long life; no direct friction between the piston and the metal valve cavity, the installation direction of the valve body is not limited; the special coil is not easy to burn ; Long-term deactivation, the action is equally sensitive; the minimum starting pressure is 1.0MPa.

A series of imported solenoid valves of the American Buhrer brand: direct-acting solenoid valves, step-wise direct-acting solenoid valves, medium-low pressure solenoid valves, high-pressure solenoid valves, ultra-high-pressure solenoid valves, ultra-high temperature solenoid valves, steam solenoid valves, low-temperature solenoid valves, Anti-corrosion solenoid valve, diving solenoid valve, gas solenoid valve, gas fast cut-off solenoid valve, new gas safety solenoid valve, vacuum solenoid valve, pulse solenoid valve, self-protection solenoid valve, two-position three-way solenoid valve, solenoid with manual function Valve, solenoid valve with signal function, etc.

Main technical parameters of imported high pressure solenoid valve:
Product specifications: DN1 ～ DN500
Body material: stainless steel
Applicable medium: water, gas, oil, steam, gas, corrosive fluid, etc.
Temperature range: -100 to + 550 ° C
Medium viscosity: less than 50C St
Protection performance: waterproof, explosion-proof (Exd IICT5), anti-corrosion
Wiring method: terminal block type; lead type; plug type
Control method: normally open, normally closed
Power supply voltage: DC12 ～ 127V; AC36 ～ 380V
Connection method: internal thread, flange, external thread
Leakage: Zero

Working principle of imported high pressure solenoid valve:
Normally closed: When the coil is energized, the pilot valve core is closed, the pilot hole is opened, the upper cavity of the valve is depressurized, the piston is pushed by the pressure of the lower cavity medium, and the solenoid valve is opened; The hole is closed, the valve cavity is pressurized by the piston orifice and the thrust of the return spring, and the solenoid valve is closed.
Normally open: When the coil is energized, the pilot hole is closed, the upper cavity of the valve is pressurized by the piston orifice and the thrust of the return spring, and the solenoid valve is closed. When the coil is de-energized, the pilot valve core is reset by the spring, the pilot hole is opened, the upper cavity of the valve is depressurized, the piston is pushed by the pressure of the lower cavity medium, and the solenoid valve is opened.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
