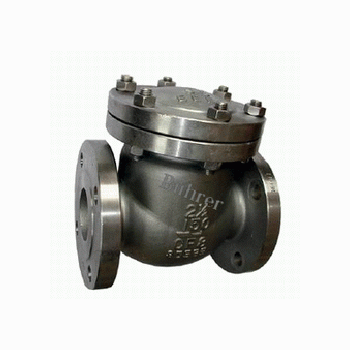

Product name: Imported swing check valve Product model:
Buhrer
Drive method: automatic Connection form: flange, wafer type, welding, thread
Structure: Swing type Seal structure: PTFE, PPL, hard seal
Pressure range: 150 ~ 1500LB Nominal dia
meter: DN15-600
Common materials: WCB, 304, 316, alloy steel, etc.
Product introduction
The imported swing check valve produced by Breer, the drive method can choose automatic, the connection method can choose flange, wafer type, welding, thread, structure type can choose swing type, seal structure can choose PTFE, PPL, hard Sealed, pressure range PN150 ~ 1500LB, nominal dia
meter is DN15-600mm, material can choose WCB, 304,316, alloy steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
Imported swing check valve-The main role of the American
Buhrer brand is to prevent the medium from flowing backwards, to prevent the
pump and drive motor from reversing, and to release the container medium. It can also be used to supply lines to auxiliary systems where the pressure may rise above the system pressure.
Imported swing check valve size: DN15 ~ 600mm
Pressure rating: ANSI 150 ~ 900LB
Body material: carbon steel, stainless steel, cast iron
Applicable medium: gas, liquid, steam
Operation method: automatic
Features of imported flange check valve:
1.With built-in swing arm swing-open structure, all opening and closing parts are installed inside the valve body, and do not penetrate the valve body
2. The connecting part of the rocker arm and the valve disc adopts a spherical connection structure, so that the valve disc has a certain degree of freedom in the 360 ° range, and there is a suitable micro-position compensation
3. The sealing surface of the valve sealing pair is welded with alloy steel or cemented carbide, even if it is used in the medium with fine particles, it will not wear away quickly due to erosion.
4. The connection between the valve body and the bonnet for higher pressure valves uses a pressure self-tightening seal structure. The combination of a wedge-shaped seal ring and a four-open ring makes the seal more reliable at higher pressures.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
