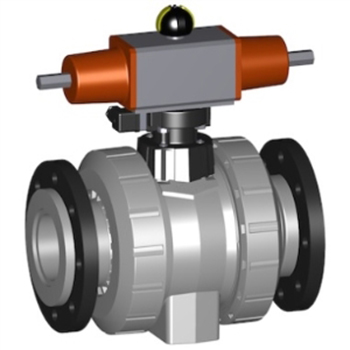

+GF+ 230 Pneumatic Ball Valve PVC-C FC with PP-st backing flange end

+GF+ 230 Pneumatic Ball Valve PVC-C FC with PP-st backing flange end

  • Automatic valve position feedback with handle
  • More than 25,000 movements and long life
  • Namu standard gas path connecting device
  • Compact design and modular assembly
  • Product description: +GF+9900 transmitter, +GF+ turbidity monitoring instrument, +GF+ residual chlorine detection instrument, +GF+ flow monitoring instrument, +GF+ conductivity monitoring instrument, +GF+ pressure monitor
  • INQUIRY
details:
Types 230, 231, 232, 233, 234 and 235 are from type 546 (d16DN10 to d63DN50) and pneumatic actuators PA11 (DN10-DN25), PA21 (DN32-DN50), PA35 (DN65), PA40 (DN80/DN100) Or PA45 (DN100) combination. The 230-235 modular design meets the needs of specific applications.
model:
Control time: 90°<) 1-2s
Assemble pneumatic actuators: PA11 (DN10/15-25), PA21 (DN32-50), PA30 (DN65), PA40 (DN80), PA40 (DN100)
(1) Easy to install and easy to disassemble
(2) Built-in stainless steel fixing screw hole
(3) The total length complies with the EN558 standard
Connection size: ISO 7005, EN 1092, BS 4504, DIN 2501
Options:
Individual valve configuration (see table)
Related products:
Type 231: Type 546 PP (Standard type)
Model 230: Type 546 PVC-U, PVC-C and ABS (ISO)
Type 235: Type 546 PVC-U, PVC-C (JIS)
Type 234: Type 546 PVC-U, PVC-C and ABS (BS)
Type 233: Type 546 PVC-U, PVC-C and ABS (ASTM/ANSI)
Type 232: Type 546 PVDF (Standard type)
Application areas:
(1) Chemical industry
(2) Food and Beverage
(3) Life Science
(4) Measurement and control
(5) Water treatment
(6) Microelectronics
(7) Ship
swimming pool:
(1) Automatic valve position feedback with handle
(2) More than 25,000 movements and long life
(3) Namu standard gas path connecting device
(4) Optional handle
(5) Compact design and modular assembly
(6) Optional travel limit for FC/FO
