details:

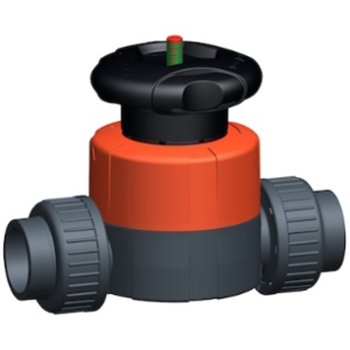

+GF+ new generation diaphragm valves use new safety, efficiency and simplicity standards. <br /> Compared to the traditional four-bolt design, the new diaphragm valve features a vegan compression nut design, non-corrosive, uniform temperature performance, and a pressure rating of up to 16 bar. Has almost linear flow characteristics. <br /> There is basically no dead zone, and the hygienic performance is greatly improved. <br /> Lockable handles, different color indicators, and self-adjusting multi-function modules, integrated limit switches, etc. provide customers with a friendly interface.
model:
(1) No oil
(2) Double flow rate compared to previous products
(3) Replace the original four bolts with a compression nut
(4) Handwheel with built-in locking device
(5) Easy to install and easy to disassemble
(6) Shorter total length
Options:
(1) Individual valve configuration (see table)
(2) Self-adjusting multi-function module with integrated limit switch
(3) PN16 can be configured
(4) Related products:
(5) Type 514 - with true union connection
(6) Model 515 - with tube end
(7) Type 517 - with flange connection
(8) Type 519 - Branch valve
Standards:
ISO, BS, ANSI, ASTM, JIS
Optional:
(1) Available in pneumatic type, see DIASTAR
(2) Multiple user-specific execution scenarios can be generated by the configurator
(3) Self-adjusting electrical feedback device
Application areas:
(1) Food and Beverage
(2) Chemical industry
(3) Life Science
(4) High viscosity and application of solid medium
(5) Measurement and control
(6) Water treatment
(7) Microelectronics
(8) Swimming pool:
(9) The flow direction is not limited by the installation position
(10) Integrated fastening system with threaded insert for mounting
(11) Corrosion resistance and high pressure resistance
(12) Easy to operate with lockable steering wheel and two-color indicator
(13) Double flow rate and linear characteristics of the valve bring high efficiency
(14) A wide range of materials to achieve the best chemical resistance
(15) Suitable for slurry and grinding media
(16) Control the single flow tube to a minimum
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
