+GF+George Fischer

  • +GF+ Butterfly Valve 568 PVC Manual Butterfly Valve

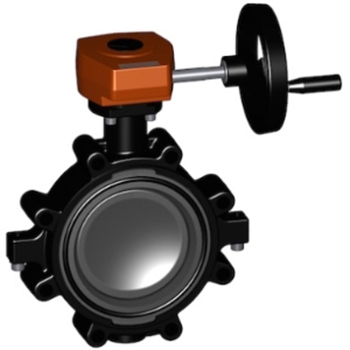

+GF+ Butterfly Valve 568 PVC Manual Butterfly Valve

+GF+ Butterfly Valve 568 PVC Manual Butterfly Valve

  • (valve body) shell GGG-40.3 cast iron, epoxy coating
  • The total length conforms to EN558, ISO5752 standard
  • Manual valve with handle or reduction gear
  • Pneumatic or electrical actuators
  • Product description: +GF+9900 transmitter, +GF+ turbidity monitoring instrument, +GF+ residual chlorine detection instrument, +GF+ flow monitoring instrument, +GF+ conductivity monitoring instrument, +GF+ pressure monitor
  • INQUIRY
details:
(1) (valve body) shell GGG-40.3 cast iron, epoxy coating
(2) The total length conforms to EN558, ISO5752 standard
Connection size: ANSI/ ASME B 16.5 Level 150
Standards:
ANSI
JIS
Optional:
(1) Manual valve with handle or reduction gear
(2) Pneumatic or electrical actuators
Application areas:
(1) Cooling equipment
(2) Chemical treatment industry
(3) Ship
(4) EPDM or FPM seal
(5) Automotive industry
(6) Power plant
(7) Water treatment
(8) Swimming pool:
(9) The electric position indicator can be integrated in the mounting flange
(10) abrasion can be reduced noticeably
(11) Compared with the concentric butterfly valve, the driving torque is reduced by 50% due to the double eccentric design
(12) The handle is made of glass fiber reinforced polypropylene (PP-GF 30) with a ratchet angle of 5°.
(13) Optimized gasket
(14) All components in contact with the media are made of the same pipe material, so leakage may be minimized
