Baumer Baumer product IFRM Type IFRM Type Standard Sensor Inductive Proximity Switch

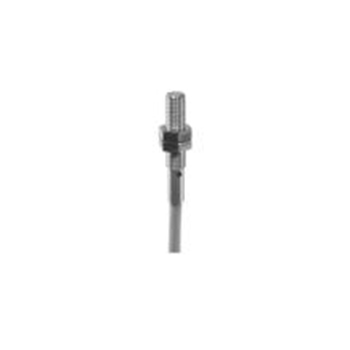

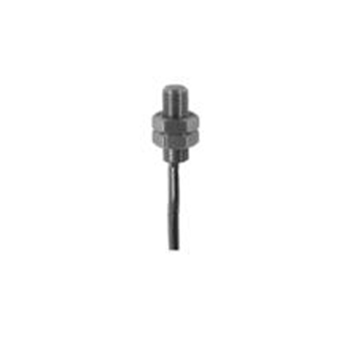

IFRM 03 - Inductive proximity switch
Ordering code Connector target='_blank'>Connector type Output circuit Shell length Output indicator
IFRM 03N1501/KS35L lead connector M8 NPN normally open (NO) 22 mm LED red
IFRM 03N1501/L cable, 2 m NPN normally open (NO) 22 mm LED red
IFRM 03N1503/Q wire, 0,5 m NPN normally open (NO) 16 mm -
IFRM 03N3501/KS35L Lead Connector target='_blank'>Connector M8 NPN Normally Closed (NC) 22 mm LED Red
IFRM 03N3501/L cable, 2 m NPN normally closed (NC) 22 mm LED red
IFRM 03N3503/Q wire, 0,5 m NPN normally closed (NC) 16 mm -
IFRM 03P1501/KS35L lead connector M8 PNP normally open (NO) 22 mm LED red
IFRM 03P1501/L cable, 2 m PNP normally open (NO) 22 mm LED red
IFRM 03P1503/Q wire, 0,5 m PNP normally open (NO) 16 mm -
IFRM 03P3501/KS35L lead connector M8 PNP normally closed (NC) 22 mm LED red
IFRM 03P3501/L cable, 2 m PNP normally closed (NC) 22 mm LED red
IFRM 03P3503/Q wire, 0,5 m PNP normally closed (NC) 16 mm

IFRM 03 (short housing) - Inductive proximity switch
Order Code Connector target='_blank'>Connector Type Output Circuit Shell Length
IFRM 03N1713/L cable, 2 m NPN normally open (NO) 16 mm
IFRM 03N1713/QL wire, 0,5 m NPN Normally open (NO) 12 mm
IFRM 03N3713/L cable, 2 m NPN normally closed (NC) 16 mm
IFRM 03N3713/QL wire, 0,5 m NPN normally closed (NC) 12 mm
IFRM 03P1713/L cable, 2 m PNP normally open (NO) 16 mm
IFRM 03P1713/QL wire, 0,5 m PNP Normally open (NO) 12 mm
IFRM 03P3713/L cable, 2 m PNP normally closed (NC) 16 mm
IFRM 03P3713/QL wire, 0,5 m PNP normally closed (NC) 12 mm

IFRM 03 (Inline Cable Amplifier) - Inductive Proximity Switch
Order code output circuit
IFRM 03N1505/CS35L NPN Normally Open (NO)
IFRM 03N3505/CS35L NPN Normally Closed (NC)
IFRM 03P1505/CS35L PNP Normally Open (NO)
IFRM 03P3505/CS35L PNP normally closed (NC)

IFRM 04 (M4) - Inductive proximity switch
Order Code Connector target='_blank'>Connector Type Output Circuit
IFRM 04N15B1/KS35PL lead connector M8 NPN normally open (NO)
IFRM 04N15B1/L cable, 2 m NPN normally open (NO)
IFRM 04N35B1/KS35PL Lead Connector target='_blank'>Connector M8 NPN Normally Closed (NC)
IFRM 04N35B1/L cable, 2 m NPN normally closed (NC)
IFRM 04P15B1/KS35PL lead connector M8 PNP normally open (NO)
IFRM 04P15B1/L cable, 2 m PNP normally open (NO)
IFRM 04P35B1/KS35PL Lead Connector target='_blank'>Connector M8 PNP Normally Closed (NC)
IFRM 04P35B1/L cable, 2 m PNP normally closed (NC)

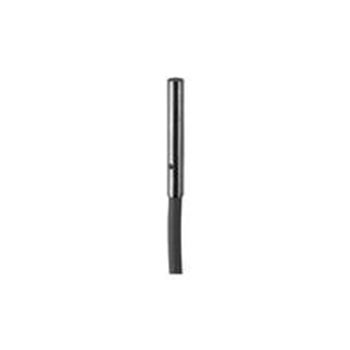

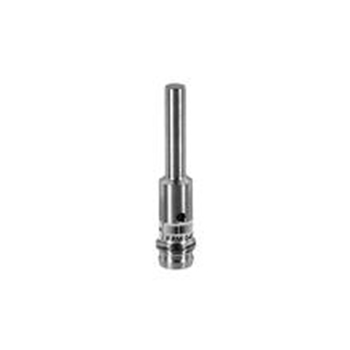

IFRM 04 (ø 4 mm, M8 connector) - Inductive proximity switch
Order code output circuit shell length
IFRM 04N15A3/S35L NPN Normally Open (NO) 36 mm
IFRM 04N35A3/S35L NPN normally closed (NC) 36 mm
IFRM 04P15A1/S35L PNP Normally Open (NO) 45 mm
IFRM 04P15A3/S35L PNP Normally Open (NO) 36 mm
IFRM 04P35A1/S35L PNP normally closed (NC) 45 mm
IFRM 04P35A3/S35L PNP normally closed (NC) 36 mm

IFRM 04 (ø 4 mm, Sn = 1,6 mm, M8 connector) - Inductive proximity switch
Order code output circuit shell length
IFRM 04N17A1/S35L NPN Normally Open (NO) 45 mm
IFRM 04N17A3/S35L NPN Normally Open (NO) 36 mm
IFRM 04N37A1/S35L NPN normally closed (NC) 45 mm
IFRM 04N37A3/S35L NPN normally closed (NC) 36 mm
IFRM 04P17A1/S35L PNP Normally Open (NO) 45 mm
IFRM 04P17A3/S35L PNP Normally Open (NO) 36 mm
IFRM 04P37A1/S35L PNP normally closed (NC) 45 mm
IFRM 04P37A3/S35L PNP normally closed (NC) 36 mm

IFRM 04 (Sn = 1,6 mm, short housing) - Inductive proximity switch
Ordering code Connector target='_blank'>Connector type Output circuit Shell length Output indicator
IFRM 04N17A3/KS35PL Lead Connector target='_blank'>Connector M8 NPN Normally Open (NO) 20 mm LED Red
IFRM 04N17A3/PL cable, 2 m NPN normally open (NO) 20 mm LED red
IFRM 04N17A3/S05L connector M5 NPN normally open (NO) 24 mm 2 end point red LED red
IFRM 04N37A3/KS35PL Lead Connector target='_blank'>Connector M8 NPN Normally Closed (NC) 20 mm LED Red
IFRM 04N37A3/PL cable, 2 m NPN normally closed (NC) 20 mm LED red
IFRM 04N37A3/S05L connector M5 NPN normally closed (NC) 24 mm 2 end point red LED red
IFRM 04P17A3/KS35PL Lead Connector target='_blank'>Connector M8 PNP Normally Open (NO) 20 mm LED Red
IFRM 04P17A3/PL cable, 2 m PNP normally open (NO) 20 mm LED red
IFRM 04P17A3/S05L connector M5 PNP normally open (NO) 24 mm 2 end point red LED red
IFRM 04P37A3/KS35PL Lead Connector target='_blank'>Connector M8 PNP Normally Closed (NC) 20 mm LED Red
IFRM 04P37A3/PL cable, 2 m PNP normally closed (NC) 20 mm LED red
IFRM 04P37A3/S05L connector M5 PNP normally closed (NC) 24 mm 2 end point red LED red

IFRM 04 (Sn = 1,6 mm, long housing) - Inductive proximity switch
Order Code Connector target='_blank'>Connector Type Output Circuit
IFRM 04N17A1/KS35PL lead connector M8 NPN normally open (NO)
IFRM 04N17A1/PL cable, 2 m NPN normally open (NO)
IFRM 04N37A1/KS35PL Lead Connector target='_blank'>Connector M8 NPN Normally Closed (NC)
IFRM 04N37A1/PL cable, 2 m NPN normally closed (NC)
IFRM 04P17A1/KS35PL lead connector M8 PNP normally open (NO)
IFRM 04P17A1/PL cable, 2 m PNP normally open (NO)
IFRM 04P37A1/KS35PL Lead Connector target='_blank'>Connector M8 PNP Normally Closed (NC)
IFRM 04P37A1/PL cable, 2 m PNP normally closed (NC)

IFRM 04 (short housing) - Inductive proximity switch
Ordering code Connector target='_blank'>Connector type Output circuit Shell length Output indicator
IFRM 04N15A3/KS35PL Lead Connector target='_blank'>Connector M8 NPN Normally Open (NO) 20 mm LED Red
IFRM 04N15A3/L cable, 2 m NPN normally open (NO) 20 mm LED red
IFRM 04N15A3/S05L connector M5 NPN normally open (NO) 24 mm 2 end point red LED red
IFRM 04N35A3/KS35PL Lead Connector target='_blank'>Connector M8 NPN Normally Closed (NC) 20 mm LED Red
IFRM 04N35A3/L cable, 2 m NPN normally closed (NC) 20 mm LED red
IFRM 04N35A3/S05L connector M5 NPN normally closed (NC) 24 mm 2 end point red LED red
IFRM 04P15A3/KS35PL Lead Connector target='_blank'>Connector M8 PNP Normally Open (NO) 20 mm LED Red
IFRM 04P15A3/L cable, 2 m PNP Normally open (NO) 20 mm LED Red
IFRM 04P15A3/S05L connector M5 PNP normally open (NO) 24 mm 2 end point red LED red
IFRM 04P35A3/KS35PL Lead Connector target='_blank'>Connector M8 PNP Normally Closed (NC) 20 mm LED Red
IFRM 04P35A3/L cable, 2 m PNP normally closed (NC) 20 mm LED red
IFRM 04P35A3/S05L connector M5 PNP normally closed (NC) 24 mm 2 end point red LED red

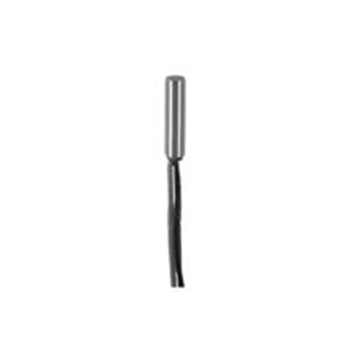

IFRM 04 (very short housing) - Inductive proximity switch
Order code output circuit
IFRM 04N15A5/Q NPN Normally Open (NO)
IFRM 04N35A5/Q NPN Normally Closed (NC)
IFRM 04P15A5/Q PNP Normally Open (NO)
IFRM 04P35A5/Q PNP Normally Closed (NC)

IFRM 04 (long housing) - Inductive proximity switch
Order Code Connector target='_blank'>Connector Type Output Circuit
IFRM 04N15A1/KS35PL lead connector M8 NPN normally open (NO)
IFRM 04N15A1/L cable, 2 m NPN normally open (NO)
IFRM 04N35A1/KS35PL Lead Connector target='_blank'>Connector M8 NPN Normally Closed (NC)
IFRM 04N35A1/L cable, 2 m NPN normally closed (NC)
IFRM 04P15A1/KS35PL lead connector M8 PNP normally open (NO)
IFRM 04P15A1/L cable, 2 m PNP normally open (NO)
IFRM 04P35A1/KS35PL Lead Connector target='_blank'>Connector M8 PNP Normally Closed (NC)
IFRM 04P35A1/L cable, 2 m PNP normally closed (NC)

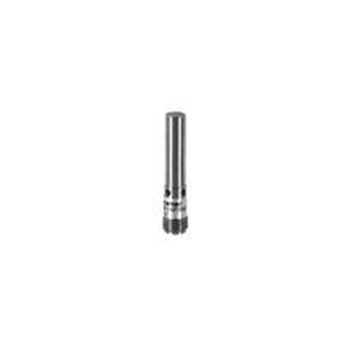

IFRM 05 (M8 connector) - Inductive proximity switch
Order code output circuit shell length
IFRM 05N15A3/S35L NPN Normally Open (NO) 36 mm
IFRM 05N35A3/S35L NPN normally closed (NC) 36 mm
IFRM 05P15A1/S35L PNP Normally Open (NO) 45 mm
IFRM 05P15A3/S35L PNP Normally Open (NO) 36 mm
IFRM 05P35A1/S35L PNP normally closed (NC) 45 mm
IFRM 05P35A3/S35L PNP normally closed (NC) 36 mm

IFRM 05 (Sn = 1,6 mm, M8 connector) - Inductive proximity switch
Order code output circuit shell length
IFRM 05N17A1/S35L NPN Normally Open (NO) 45 mm
IFRM 05N17A3/S35L NPN Normally Open (NO) 36 mm
IFRM 05N37A1/S35L NPN normally closed (NC) 45 mm
IFRM 05N37A3/S35L NPN normally closed (NC) 36 mm
IFRM 05P17A1/S35L PNP Normally Open (NO) 45 mm
IFRM 05P17A3/S35L PNP Normally Open (NO) 36 mm
IFRM 05P37A1/S35L PNP normally closed (NC) 45 mm
IFRM 05P37A3/S35L PNP normally closed (NC) 36 mm

IFRM 05 (short housing) - Inductive proximity switch
Order Code Connector target='_blank'>Connector Type Output Circuit Shell Length Output Finger
