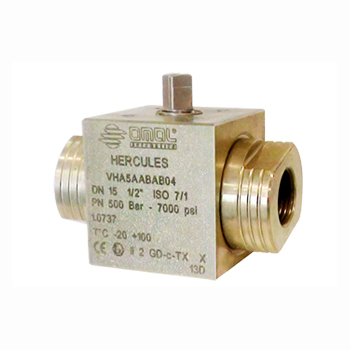

HERCULES Hercules Series High Pressure Ball Valves
Application: CNG-LPG-LNG industry
Caliber: DN6 – DN50
Certification: API; ATEX; CE; fire test conforms to API6FA and API607 standards
OMAL Omar is a new generation of valves that are produced to the highest standards and can be used in high frequency circulation. It is used for opening and closing devices under high pressure pipelines of various gas filling stations. Excellent high pressure performance and unique combination seal for higher safety factor; special structure optimization, suitable for high pressure difference, high frequency, wide temperature range, long-term use environment, and obtained international certifications such as API, ATEX and CE.
*

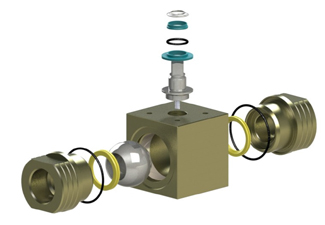

OMAL Omar has developed the special material Powerammide with the most famous material manufacturer in Europe. The stem force area is wrapped with the upper and lower bushings made of this material. The upper bushing turns the friction between the original metal and metal into a friction between the metal and the non-metal, ensuring that the valve does not leak even under high cycle operating conditions. The lower sleeve adopts a shoulder-shaped design to increase the force area, which not only enhances the sealing effect, but also effectively buffers the huge impact force of the valve stem when the high pressure difference is high.
* The dia
meter of the ball is increased by 60%, effectively dispersing the pressure shock and increasing the sealing contact area between the ball and the valve seat. For example, the DN15 ball valve, the force field of the ball on the valve seat is 4.52cm2, and can withstand 2.26 tons of pressure, which is higher than ordinary high pressure. Valve lift 70%
* V-type seat design, providing back pressure under high pressure, reducing the deflection angle of the ball; increasing the pre-tightening force of the seal under low pressure to ensure the stability of the valve during operation
* The main body is forged with high pressure impact, and the valve withstand voltage up to 500Bar
* Fire and anti-static design, fire protection design and testing follow API6FA and API607 standards
technical para
meter
Dimensions: DN6 – DN50 Connection: G thread ISO0228, ISO 7/1RP standard, NPT thread
Pressure: PN500 / PSI7000 (DN6-DN15) Seat seal: Special polyamide (nylon) material
PN320 / PSI4500 (DN20-DN50) Medium: Natural gas, oil, petrochemical and petroleum products

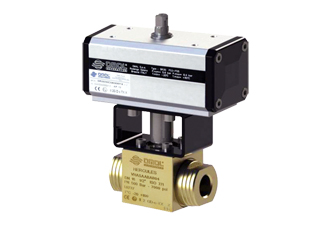

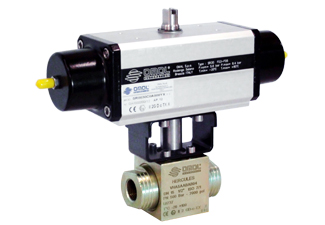

Material: Carbon steel, stainless steel Control method: manual, pneumatic, electric
Operating temperature: -30 ° C to +100 ° C
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
