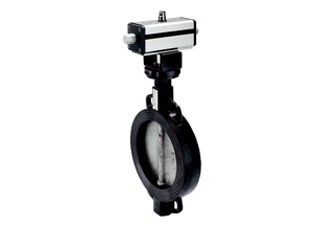

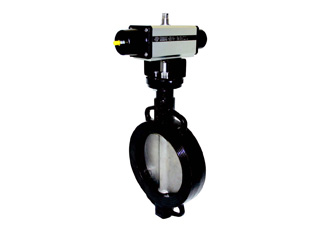

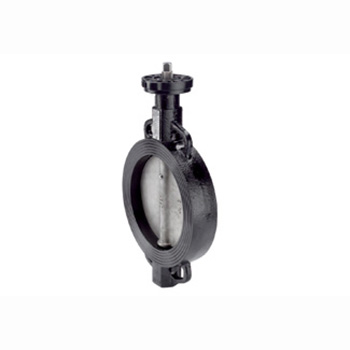

Metal sealing butterfly valve ITEM 270/474
Applications: Petrochemical, energy, metallurgical, etc.
Installation size: according to ISO 5211:2003 standard
Certification: 97/23 EC “PED” certification; DVGW gas certification (V375-V376); RINA certification; for fluid and pipeline fluid media (V376); ATEX certification (94/9/EC certification)
OMAL Omar Metal Sealed Butterfly Valves are suitable for high temperature processes with a small amount of solid impurities.
There are also optional products for high temperature steam applications.
* Structure length in accordance with ISO 5752; actuator connection in accordance with ISO 5211
* Surface hardening of metal sealing surfaces and main components, wear resistance is better
* Smaller opening and closing torque, DN ≦ 150mm for handle operation, DN > 150mm for worm gear transmission
Box operation can also be operated electrically and pneumatically. The drive can be multi-station (rotate 90° or
180°) installation for user convenience
Ontology form
ITEM 270
ITEM 474
Nominal dia
meter
1”1/2~8” (DN40-DN200)
Nominal pressure
PN10-PN16-ANSI 150
Operating temperature
-50 ° C to +100 ° C (-50 ° C to +500 ° C on request)
Connection method
Wafer flange
Body material
Ductile iron
Stainless steel 316
Valve plate material
Ductile iron
Stainless steel 316
Seat leakage
Valve leakage is about 1.5~2%
Executive agency
Standard DA series: double acting fork type pneumatic actuator
Standard SR Series: Single Action Type Fork Actuator
certificate
Special requirements for ATEX certification
application
