Name: Import stop valve Model:
Regus Caliber: DN15-300 Pressure: 150-2500LB Material: WCB, 304, 316
British

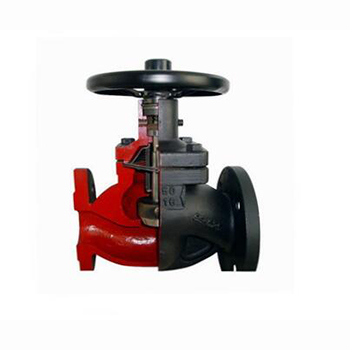

Regus Regus import stop valve
The shut-off valve, also known as the gate valve, is a forced-sealed valve, so when the valve is closed, pressure must be applied to the valve flap to force the sealing surface to not leak. When the medium enters the valve from under the valve flap, the resistance to be overcome by the operating force is the friction between the stem and the packing and the thrust generated by the pressure of the medium. The force of closing the valve is greater than the force of opening the valve, so the valve stem The dia
meter of the stem should be large, otherwise the valve stem can be bent. There are three types according to the connection method: flange connection, thread connection, and welding connection. After the self-sealing valve appears, the medium flow direction of the shut-off valve is changed into the valve cavity from above the valve flap. At this time, under the action of the medium pressure, the force of closing the valve is small, and the force of opening the valve is large, and the dia
meter of the valve stem can be correspondingly Reduced. At the same time, this type of valve is also tight under the action of the medium.
The opening and closing member of the stop valve (Globe Valve) is a plug-shaped valve flap having a flat surface or a sea cone surface, and the valve flap moves linearly along the center line of the valve seat. The movement of the valve stem, (common name: dark rod), and the lifting rotary rod type can be used to control various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. flow. Therefore, this type of shut-off globe valve is well suited for shut-off or regulation and throttling. Due to the relatively short opening or closing stroke of the valve stem of this type of valve, and the very reliable cutting function, and because the change of the valve seat opening is proportional to the stroke of the valve flap, it is very suitable for the adjustment of the flow rate.
British
Regus Regus import cut-off valve definition:
The shut-off valve, also called the cut-off valve, is one of the most widely used types of valves. It is popular because it has a small friction between the sealing surfaces during opening and closing, is relatively durable, and has a small opening height and is easy to manufacture. Easy to maintain, not only for medium and low pressure, but also for high pressure. The closing principle of the shut-off valve is that, relying on the pressure of the valve bar, the sealing surface of the valve disc and the sealing surface of the valve seat are closely fitted to prevent the medium from flowing.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
