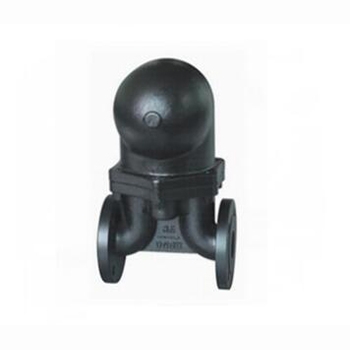

Name: Imported lever float type trap Model:
Regus Caliber: DN15-100MM Pressure: PN16-PN63 Material: WCB, 304, 316
British
Regus Regus imported lever float trap
Lever Float Traps General term: Traps, traps are valves used in steam pipe networks and equipment to automatically discharge condensate, air and other non-condensable gases, and block water vapor leakage.
British
Regus Regus imported lever float trap definition:
The biggest advantage of the lever float steam trap is that it is not affected by fluctuations in pressure, temperature and condensate flow. Continuous drainage, water is discharged, and the minimum degree of subcooling is 0 °C, which can make the heating equipment reach the best working efficiency; The valve seat of the lever float steam trap is always below the liquid level, forming a water seal, no steam leakage; its minimum working pressure is 0.01Mpa, the maximum back pressure is ≤85%; the inside is equipped with exhaust device, lever float The steam trap adopts the most advanced bellows component as the automatic air exhaust valve, which can automatically eliminate non-condensing gas, is very sensitive, has high work quality and long service life. The trap is designed with a balanced double seat structure to achieve small volume and large displacement. It is especially suitable for steam-blocking drainage of large heating equipment and heat exchange equipment. It is the preferred steam trap for large heating equipment.
The valve utilizes a double valve bore to allow the valve core to be relatively reduced in pressure when the valve is opened, resulting in an oversized displacement. During operation, the float floats up and down with the change of the liquid level in the valve chamber, and drives the lever to open or close the valve seat. Since the valve seat hole is below the condensed water level, a water seal is formed, and the water and steam are naturally separated to achieve no steam leakage.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
