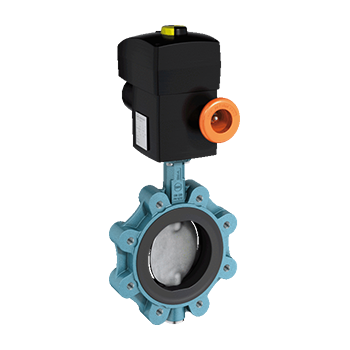

Z014-A Ear type internal thread rubber butterfly valve
Features: two-way bubble level zero leakage, double (single) valve stem without pin structure, can be matched with single flange assembly, internal threaded hole connection is more stable, fully repairable, life-long maintenance-free
Applicable medium: drinking water, beverage, sewage, high purity water, sea water, air, natural gas, gas, steam, oil, food grade oil, pulp, beer, coal powder, flour, granular powder, cement, lime slurry, concrete, smoke Road gas, power plant desulfurization, etc.
Nominal dia
meter: DN20-DN600
Working temperature: -20 ° C ~ +160 ° C
Working pressure: max 16bar
Seal rating: ANSI 16-104, Class VI
Vacuum application: 0.2 bar absolute pressure*
Valve body: ductile iron GGG40, ductile iron GGG40.3
Valve plate: ductile iron GGG40, stainless steel 1.4408, 1.4469, aluminum bronze 2.0975, anti-corrosion coating, mirror polishing, silicon-free treatment
Stem: stainless steel 1.4104, 1.4401
Seat: EPDM ethylene propylene rubber, NBR nitrile rubber, FPM fluorinated rubber, AU polyurethane, VSI silicone rubber
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
