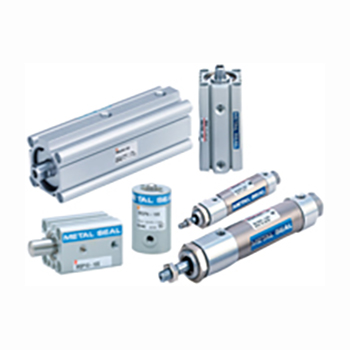

Low friction cylinder / metal seal MQQ/MQM/MQP

・The metal seal structure with small sliding resistance is used.
Can be used for special drive speeds and output control.

Model Series Cylinder Inner Diameter
(mm) Operating pressure range
(MPa) drive speed
(mm/s)
Standard type MQQT 10,16,20,25,30,40 0.005～0.5 0.3～300
Transverse load resistance type MQQL 10,16,20,25,30,40 0.005～0.7 0.5～500
Transverse load resistance type MQML 6 0.02~0.7 0.5～1000
Transverse load resistance type MQML 10,16,20,25 0.005～0.7 0.5～1000
High speed and high frequency MQML□□H 10,16,20,25 0.01~0.7 5～3000
Single acting MQP 4,6,10,16,20 0.001~0.7 -
