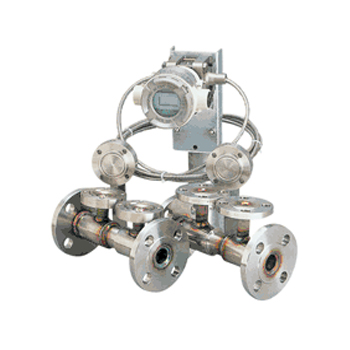

Elliptical slot flowmeter SDR11F

Elliptical slot flowmeter SDR11F

  • Elliptical slot flowmeter
  • Pressure loss is smaller than orifice plate.
  • Fast response, even when the fluid is pulsating.
  • The pressure hole has a larger caliber than the usual orifice plate.
  • Product description: Azbil products include pressure sensors, differential pressure sensors, electromagnetic flowmeters, mass flowmeters, eddy current flowmeters, liquid level meters, temperature transmitters, temperature
  • INQUIRY
Elliptical orifice flowmeter is a kind of throttle flowmeter which designs an elliptical conical throttle device on the flow path and measures the flow rate by measuring the differential pressure between the front part of the throttle device and the throttle part. Take out the differential pressure guide hole and the structure of the differential pressure detecting part which is not easy to accumulate the attachments or sediment. It is widely used in the measurement of liquid, sediment fluid, gas, steam, powder and other solid-gas two-phase fluids.
It is a differential pressure flowmeter with small pressure loss and energy saving. It can reduce CO2 emissions from factories.
Streamlined streamline

The throttling part is made into 1/2 ellipse shape. Therefore, the throttling part will not have a retaining part and can obtain smooth streamline, can obtain high precision and stable repeatability of good output.
Low pressure loss

The pressure loss is smaller than the orifice plate (1/2-1/4 of the same throttling device ratio), and the differential pressure is about 8%-50%. The energy loss can be reduced and the power source can also be miniaturized.
High speed responsiveness

The response is fast and can be tracked even when the fluid is pulsating. (~ 1Hz)
Corresponding to a wide range of measuring fluids

The diameter of the guide hole is larger than that of the usual orifice plate (10mm ~ 14mm). Therefore, the large diameter which is not easy to plug can be used to detect the fluid even containing attachments and solids. And with 1/2B remote transmitter can realize the installation of non pressure tube.
