Separate type temperature and humidity sensor

Separate type temperature and humidity sensor

  • Separate temperature and humidity sensor HTY7843
  • Polymer volumetric humidity measuring element
  • The probe part is miniaturized from the amplifier section.
  • It can be detected or installed on small devices in narrow space.
  • Product description: Azbil products include pressure sensors, differential pressure sensors, electromagnetic flowmeters, mass flowmeters, eddy current flowmeters, liquid level meters, temperature transmitters, temperature
  • INQUIRY

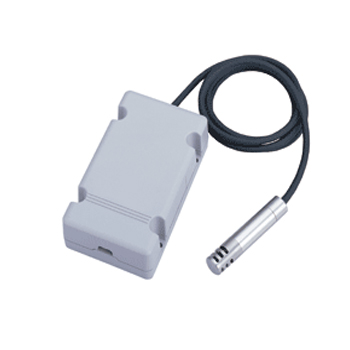

Separated temperature and humidity sensor HTY7843 is a temperature sensor using Pt100 platinum thermal resistance (JIS C1604 A), humidity detection components using polymer capacitive humidity sensor (our company developed FP3) high precision and high reliability sensor.
Wide detection range, excellent stability, can be used for air conditioning duct or chamber inside and outside the gas detection or a variety of industrial applications.
Wide range and high accuracy temperature and humidity measurement.
Excellent environmental resistance.
Long term stability is excellent.
The probe part is miniaturized from the amplifier section.
It can be detected or installed in small space in narrow space.
If additional filters are installed on the probe part, the protection structure of the probe part can be changed into an IP54 dust-proof and foam-proof structure.
In addition to DC1 to 5V voltage output, there are 2 line current loop DC4 to 20mA.
