  • Shan Wu double seat regulating valve

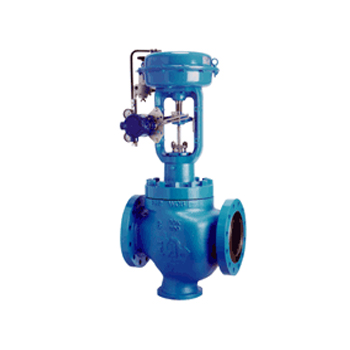

Shan Wu double seat regulating valve

Shan Wu double seat regulating valve

  • Caliber: 1-1/2 to 20 inches.
  • Manipulator: air film, piston cylinder
  • Materials: carbon steel, Cr-Mo steel, stainless steel, etc.
  • Temperature range: -196 ~ 566 degrees C
  • Product description: Azbil products include pressure sensors, differential pressure sensors, electromagnetic flowmeters, mass flowmeters, eddy current flowmeters, liquid level meters, temperature transmitters, temperature
  • INQUIRY
Main specifications
Caliber: 1-1/2 to 20 inches.
Rated pressure: JIS10K ~ 63K, JPI150 ~ 2500, ANSI150 ~ 2500
Temperature range: -196 ~ 566 degrees C
Materials: carbon steel, Cr-Mo steel, stainless steel, etc.
Manipulator: air film, piston cylinder
Accessories: valve positioners, limit switches, solenoid valves, etc.
See the specifications for each type.
Provide various material specifications

Provide carbon steel for general use, such as water, steam, fuel oil, etc., and high corrosive stainless steel, resin and other bulk materials for corrosive fluid control.
Harsh application environment correspondence

Sleeve control valve is indispensable for controlling high temperature and high differential pressure fluid, and has excellent cavitation resistance. In addition, it can be applied to reduce the low noise specification of the aerodynamic noise of steam or gas.
Excellent seat leakage performance

It is sealed (V grade) and soft sealed (VI grade).
Excellent performance against external leakage

The bellows can be attached with bellows seal. The increased demand in this area can be applied to filler specifications that are in line with the increasing demand in recent years for Fugitive Emission controls for VOC (Volatile Organic Compounds).
High control

High control is achieved through the combination of wide adjustable ratio and intelligent valve positioner.
In addition, the unique double-seat valve structure essentially eliminates the weakness of the same form of control valve due to the reversal phenomenon caused by fluid reaction, which can achieve stable control.
Structure Diagram Low Leakage Pressure Balanced Cage Control Valve Pressure Balanced Sleeve Regulator Pressure Balanced Sleeve Regulator
Low Leakage Pressure Balanced Cage Control Valve Pressure Balanced Sleeve Regulator Pressure Balanced Sleeve Regulator
Model AC2 type ACP HCB type
Connecting aperture 6B ~ 24B 1-1/2B ~ 8B 1-1/2B ~ 8B
Rated pressure JIS10K ~ 30K
ANSI (JPI) 150~600 JIS10K ~ 40K
ANSI (JPI) 150~600 JIS10K ~ 40K
ANSI (JPI) 150~600
Connection flange: RF, RJ
Welding: BW flange: RF, FF, RJ
Welding: SW, BW flange: RF, FF, RJ
Welding: SW, BW
Bulk material SCPH2
SCS13A/14A SCPH2
SCS13A/14A SCPH2/21/61
SCS13A/14A/16A/19A
Valve internals material A351CF8M, Si Tai Lai surfacing.
SCS14A, Si Tai Lai surfacing A351CF8M, Si Tai Lai surfacing.
SCS24 SCS24
SCS14A, Si Tai Lai surfacing, super hard infiltration treatment.
SCS16A, Si Tai Lai surfacing
The temperature range is -196 to +400 degrees C -196 ~ +400 degrees C -196 ~ +566 degree C
Seat leakage performance V class IV grade II, III, VI class
Cv values range from 179~582010 to 79511~850
Adjustable ratio 50:1 (optional 75:1) 50:1 (optional 75:1) 50:1 (optional 75:1)
Specialties and uses
Flexible structure
General medium and large diameter pipelines for petrochemical and chemical processes
Sealing structure
General medium diameter pipeline for petrochemical and chemical processes
General medium diameter pipeline for petrochemical and chemical processes
Option - bellows seal upper cover, steam jacket.
Specification No. SS4-AC2001-0100 SS4-ACP110-0100 SS4-HCB110-0100

Structural Drawing Sleeve Type Double Seat Regulating Valve Pressure Balanced Sleeve Regulating Valve Pressure Balanced High Pressure Sleeve Regulating Valve
Valve type sleeve type double seat regulating valve pressure balance type sleeve regulating valve pressure balance type high pressure sleeve regulating valve
Model VDC type ALVB/ALVM HPC type
Connecting aperture 5B, 10B, 12B 1-1/2B ~ 8B 1-1/2B ~ 8B
Rated pressure JIS10K ~ 40K
ANSI (JPI) 150~600 ALVB: JIS10K, ANSI (JPI) 150
ALVM: JIS20K, ANSI (JPI) 300 JIS63K
ANSI (JPI) 900~2500
Connection flange: RF, FF, RJ
SCPH2/21/61 flange: RF flange: RF, RJ
Welding: SW, BW
Bulk material SCS13A/14A/16A
SCS24 SCPH2 SCPH2/21
Valve internals material SCS14, Si Tai Lai surfacing, super hard infiltration treatment.
SCS16, Si Tai Lai surfacing SCS24 SCS24
SUS304+ super hard infiltration treatment
SUS304+ company's Tai Lai surfacing + super hard infiltration treatment
The temperature range is -195 to +600 degrees C -5 ~ +200 degrees C -5 ~ +566 degree C
Seat leakage performance II, VI class IV level III level.
Cv ranges from 99~14401440 to 39701500: 12~700
2500: 12~520
Adjustable ratio 30:1 (optional 50:1) 50:01:00 50:1 (optional 75:1)
General medium and large diameter pipelines for specialty, petrochemical and chemical processes
Sealing structure
General purpose large diameter pipeline for petrochemical and chemical processes
Electric power and self provided boiler for power generation.
High temperature and high pressure piping for steam turbine installations
Option bellows seal upper cover, steam jacket -
Specification No. - SS4-HPC210-0100

Structural diagram high pressure sleeve two seat regulating valve pressure balance sleeve control valve low noise sleeve regulating valve
Valve type high pressure sleeve two seat regulating valve pressure balance sleeve control valve low noise sleeve regulating valve
Model VDC type ADVB/ADVM ACN type
Connecting aperture 4B, 5B, 6B 6B ~ 12B 1-1/2B ~ 8B
Rated pressure JIS63K
ANSI (JPI) 900~2500 ADVB: JIS10K, ANSI (JPI) 150
ADVM: JIS16K ~ 30K, ANSI (JPI) 300 JIS10K ~ 40K
ANSI (JPI) 150~600
Connection flange: RF, RJ
Welding: SW, BW flange: RF flange: RF, FF, RJ
Welding: SW, BW
Bulk material SCPH2/21/61
SCS13A/14A/16A/19A SCPH2
SCS13A/14A SCPH2
SCS13A/14A
Valve internals material SCS24
SCS14, Si Tai Lai surfacing, super hard infiltration treatment.
SCS16, Si Tai Lai surfacing SUS316, Si Tai Lai surfacing.
SUS630 A351CF8M, Si Tai Lai surfacing
The temperature range is from 0 to +520 degrees C -45 to +400 degrees C -196 to +400 degree C.
Seat leakage performance II, III class IV level IV level.
The Cv value is below 1500: 56~315
2500: 39~210215 to 158011~580
Adjustable ratio 30:1 (optional 50:1) 50:1 50:1
Specialties, utility electric power and self provided power generation boilers.
High temperature and high pressure piping for steam turbine installations
Top and bottom two seater structure
Petroleum and petrochemical hydrocarbon pipelines
