  • Shan Wu assembly network module NX
Shan Wu assembly network module NX

Shan Wu assembly network module NX

  • assembly network module NX
  • Through the management module, multi-channel coordinated control among modules can be realized.
  • Digital input / output, pulse counting and other modular products.
  • The high-speed communication of machines. Function with MODBUS/TCP master station
  • Product description: Azbil products include pressure sensors, differential pressure sensors, electromagnetic flowmeters, mass flowmeters, eddy current flowmeters, liquid level meters, temperature transmitters, temperature
  • INQUIRY

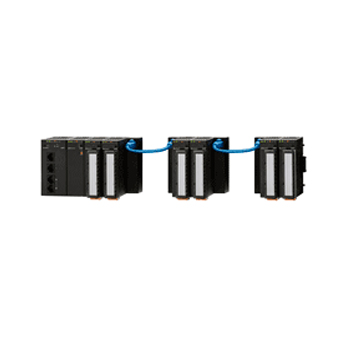

The installed network module NX is a multi-channel regulator corresponding to Ethernet communication (MODBUS/TCP). Through Ethernet communication to achieve system upgrade with PLC, touch screen and sensor.
In addition to the regulator, there are digital input/output, pulse counting and other modular products, each module can be separately ethernally distributed configuration. In addition, there are also engineering tools (SLP-NX) that can be used for all CH and general monitoring.
Correspondence of Ethernet

The standard is equipped with Ethernet communication and can realize high-speed communication of all kinds of machines. Communication with PLC with MODBUS/TCP master function does not require converters, and can be directly connected to communication. In addition, the real decentralized configuration is achieved through provincial wiring and decentralized functions.

Optimal protocol control between multiple channels

Through the management module, multi-channel coordinated control between modules can be realized.

Omnibus and general monitoring

Because the configuration tool corresponds to the ether communication, the efficiency of engineering operation is improved by the management of CH setting and monitoring.
Model regulator module
NX-D15 regulator module
NX-D25 regulator module
NX-D35 management module
NX-S11/12/21
Appearance
The number of control loops is 44232 (8 units).
Sampling period 500ms 200ms 100ms -
Rated supply voltage DC24V DC24V DC24V DC24V
Outline size (mm) H100 * W30 x D104 H100 x W30 * D104 H100 * W30 * D104 H100 * x * *

Model digital input module
NX-DX1 pulse input module
NX-DX2 digital output module
NX-DY1 digital output module
NX-DY2
Appearance
Input points 161616 (Sink) 16 (Source)
Output points - - 1616
Rated supply voltage DC24V DC24V DC24V DC24V
Outline size (mm) H100 * W30 x D104 H100 x W30 * D104 H100 * W30 * D104 H100 * x * *

Model communication BOX
NX-CB2 communication adapter
NX-CL1/CR1 terminal adapter
NX-TL1/TR1
Appearance
Port number 411
Installation method DIN guide rail DIN guide rail DIN Guide
Rated power supply voltage DC24V -
Outline size (mm) H100 * W30 x D85 H100 x W20 * D26.4 H100 * W20 * D36.5
