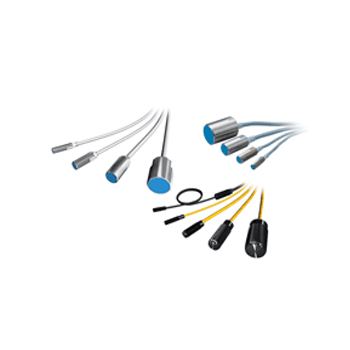

Proximity switch (proximity sensor)

Proximity switch (proximity sensor)

  • No contact detection, no friction loss and damage detection.
  • No contact output, long life.
  • Compared with contact switches, fast response can be achieved.
  • Unlike photoelectric switches, water and oil can also be used in the environment.
  • Product description: Azbil products include pressure sensors, differential pressure sensors, electromagnetic flowmeters, mass flowmeters, eddy current flowmeters, liquid level meters, temperature transmitters, temperature
  • INQUIRY
The proximity switch (proximity sensor) is a non-contact detection switch that detects whether an object (magnet) approaches the detection surface.

Various types of inductive proximity switches are available through electromagnetic combination and utilizing eddy current generated on the metal body of the test object.
It is equipped with cylindrical, angular, small, non-shielded, DC 2-wire, DC 3-wire, AC-DC dual-purpose, connector connection and corresponding environment of anti-freezing liquid type, anti-splash plating type, anti-aluminum powder type and other products.
No contact detection, no friction loss and damage detection.
No contact output, long life.
Compared with contact switches, fast response can be achieved.
Unlike photoelectric switches, water and oil can also be used in the environment.
Not affected by the color of the body.
There are abundant models.
Cylindrical type

Basic model FL7M FL7M FL7M FL7S
Type, Appearance DC 2-wire, General DC 2-wire, Long Distance DC 2-wire, Spark Resistant All Stainless Steel Seal
FL7M FL7M FL7M FL7S
DC 2 wire type with strong structure and excellent water repellency.
Display lamp improves visual recognition and reduces damage caused by workpiece collision. Welding process most suitable for automobile manufacturing line
All spark discharge measures adopted are all stainless steel sealed proximity switches.
It is specially designed for welding process of automobile production line.
Overseas standard CECUL CECUL CECUL CECULCSA
Power, line number DC, 2 line DC, 2 line DC, 2 line DC, 2 line.
*M8 caliber has DC and 3 lines.
Sensor head / detection distance M8: 2mm

M8: 1.5mm
M12: 3mm M12: 4mm M12: 3mm M12: 2mm
M18: 7mm M18: 8mm M18: 7mm M18: 5mm
M30: 10mm M30: 15mm M30: 10mm M30: 8mm
Precast line precast line precast line
Prefabricated wire connector prefabricated wire connector prefabricated wire connector prefabricated wire connector
Refitting connector, quick assembly connector, quick assembly connector -
Quick assembly connector
- -

Basic model FL7M-C FL7M-A FL7M FL7M FL7M
Type and appearance DC 2 wire type, environmental resistance type.
(General/Aluminum Powder Countermeasure) DC 2-wire, Aluminum Powder Countermeasure DC 2-wire, Non-shielded AC 2-wire DC 3-wire
FL7M-C FL7M-A FL7M FL7M FL7M
The proximity sensor for Yaan oil cable with excellent oil resistance is used.
It is specially designed for the harsh environment of coolant in automobile production line. Even if the test head is stacked with aluminum scraps and cast iron chips, the workpiece can be accurately detected. Unshielded long distance detection is realized. There is no wiring polarity. Easy to use universal type. From M8 to M30, there are various models of NPN and PNP output respectively.
Overseas standard CECUL CECUL CE - CE
Power supply, line number DC, 2 line DC, 2 line DC, 2 line DC/AC dual-use, 2 line DC, 3 line.
Sensor head size / detection distance (general type) M8: 2mm
M8: 4mm
M8: 1.5mm
M12: 3mm M12: 4mm M12: 8mm M12: 3mm M12: 2mm
M18: 7mm M18: 4mm M18: 14mm M18: 7mm M18: 5mm
M30: 10mm M30: 8mm M30: 20mm M30: 10mm M30: 10mm
Sensor head size / detection distance (aluminum powder countermeasure type) M12: 2mm



M18: 4mm



M30: 8mm



Precast line precast line precast line precast line
Prefabricated wire connector, prefabricated wire connector, prefabricated wire connector, prefabricated wire connector -
- quick assembly connector - modified connector.

small-scale

Basic model FL7 (N/M) APT APM
Model and appearance amplifier built-in
Small cylindrical amplifier relay small amplifier built-in small
FL7 (N/M) APT APM
The industry's smallest built in amplifier has a DC 2 wire cylindrical type. Miniature Amplifier (industry smallest) Small-size proximity sensors best suited for confined locations without limitations on installation
Overseas standards - CE
Power, line number DC, 2 line DC, 2 line DC, 2 line /DC, 3 line.
Sensor head size / detection distance, Phi 4, M5: 0.8mm 3.5: 0.8mm
Front end of phi 3: 0.5mm
W: 8 x H:6 (preceding detection type): 2.5mm
W: 8 x H:7.5 (side detection type): 2.5mm
W: 8 x H:9.5 (side detection type S): 2.5mm
Precast line precast line for distribution lines

Square Shape

Basic model FL2F FL2R/S FL2R-V FL2
Type, appearance, saving space DC 2 wire DC 2 wire DC 2 wire DC 3 line type.
FL2F FL2R/S FL2R-V FL2
It does not occupy the thin space of installation.
The DC 2 wire type can be directly connected to PLC and N.C. devices. The DC 2 wire type can be directly connected to PLC and N.C. devices.
There are abundant models. Proximity sensors for high surge. Open and close the relay and coil directly.
(maximum opening and closing current: 200mA)
There are abundant models.
Overseas standard CE CE CE -
Power, line number DC, 2 line DC, 2 line DC, 2 line DC, 3 line.
