ASCO numatics-mark15

ASCO numatics-mark15

  • Fieldbus Electronics and I/O Capable
  • Direct solenoid or air pilot actuated
  • Plug-in solenoid with indicator light
  • Unlubricated or lubricated service
  • Product description: ASCO is a multinational company that manufactures and sells fluid control valves and pneumatic control components. With more than 100 years of production technology experience, it has more than 23,000
  • INQUIRY

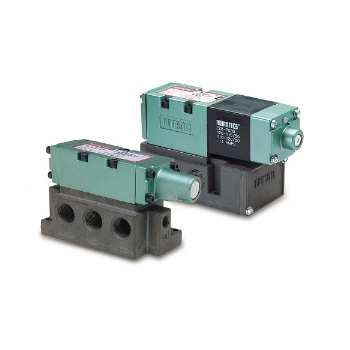

Pneumatic Valve - Directional Control Vavle - 4 Way: 5/2, 5/3 - Numatics Series Mark 15
Direct Solenoid Pilot & Air Pilot Valve - Manifold - Discrete - 1/4, 3/8

Numatics PA 15 Series are high quality air valves with high flow capacity in a compact design. The PA 15 may be mounted on a base or manifold. Sandwich speed controls and sandwich pressure regulators are available.

Standard Specifications for Mark 15 and PA 15 Series Valves:

1)Cv: 1.5
2)Port Sizes: 1/4, 3/8 NPTF & G
3)5 ported, 2 and 3 position, 4-way, spool & sleeve
4)Flow Capacity: 65 to 69 SCFM @ 80 PSIG / 1379 to 1477 NI/m @ 6 bar
5)Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
6)Pilot Pressure Range: 20 to 125 PSIG / 2 Position Detented 15 to 125 PSIG
7)Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
Features for Mark 15 and PA 15 Series Valves:

1)Fieldbus Electronics and I/O Capable
2)Direct solenoid or air pilot actuated
3)Plug-in solenoid with indicator light
4)Unlubricated or lubricated service
5)Integral speed control available
6)Integral regulators available
7)NEMA 4/IP65
8)Body to base plug-in
