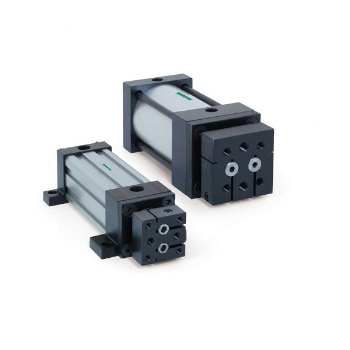

Cylinders & Actuators - Non-Rotating NFPA - Numatics Series F
Double Acting - with Cushioning - 1 1/2 to 4

The F Series is a Non-Rotating NFPA Interchangeable pneumatic cylinder line that provides the solution to specific applications where piston rotation is not acceptable. Our innovative dual rod design provides precision positioning and linear movement. This makes the F Series ideal for a multitude of high-tech applications.

Standard Specifications:

1）Meets NFPA specifications
2）Bore sizes from 1-1/2 " through 4"
3）Piston rod diameters from 5/16" through 3/4"
4）Nominal pressure rating is 250 psi air
5）Standard temperature -10°F to 165° F(-23° C to 74° C)
6）All aluminum construction, except retaining plate and tooling plate (steel)
7）NPTF ports
8）Flexible port and cushion locations

FEATURES

1）Competitive interchangeability with NFPA Aluminum cylinders.
2）Solution to specific applications where piston rotation is not acceptable.
3）Wide bore size and stroke range.
4）Achieve longer cylinder life with a larger wear band than competitive cylinders.
5）Easy to mount with over 9 mounting styles available.
6）Easy fitting capabilities with a wide range of standard fittings and rod ends.
7）Equipped for magnetic position detectors.
8）Innovative dual rod design provides precision positioning and linear movement.
9）Ideal for a multitude of high-tech applications.
