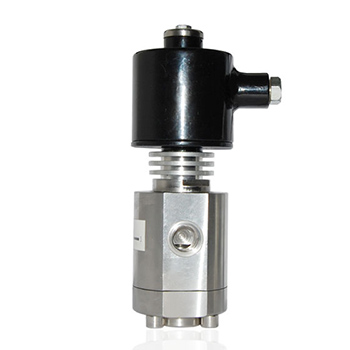

Imported steam solenoid valve
Overview of imported steam solenoid valve products
  The US YLOK imported steam solenoid valve is mainly suitable for boiler steam-saturated steam, and steam from thermal power plants-superheated steam. Widely used in textile, printing, chemical, plastic, rubber, pharmaceutical, food, building materials, machinery, electrical appliances, surface treatment and scientific research departments, as well as automatic control systems such as bathrooms, canteens, and air conditioning
1. Saturated steam The temperature and pressure are relatively stable, the temperature is lower than 250℃, and the working pressure is lower than 6.4Mpa
2. The superheated steam has a large temperature and pressure change base. The maximum temperature can reach above 400℃, and the working pressure is lower than 4.0Mpa
Working principle of imported steam solenoid valve
1. The steam solenoid valve is a step-by-step direct pilot solenoid valve, which can be divided into a normally closed solenoid valve and a normally open solenoid valve according to the different open and closed states when the power is cut off.
2. Normally closed steam solenoid valve. After the coil is energized, the armature first drives the valve plug of the auxiliary valve to lift under the electromagnetic force, and the fluid on the main valve cup flows away through the auxiliary valve, reducing the pressure on the main valve cup , When the pressure on the main valve cup is reduced to a certain value, the armature drives the main valve cup and uses the pressure difference to open the main valve cup and the medium flows. After the coil is powered off, the electromagnetic force disappears and the armature is reset due to its own weight. At the same time, depending on the medium pressure, the main and auxiliary valves can be closed tightly.
3. Normally open steam solenoid valve. After the coil is energized, the moving iron core moves down due to the suction force. The valve plug of the auxiliary valve is pressed down, the auxiliary valve is closed, and the pressure in the main valve cup rises. When the pressure rises to a certain value, the main The upper and lower pressure difference of the valve cup is the same. Due to the electromagnetic force, the moving iron core loses under the main valve valve cup, and the main valve seat is compressed and the valve is closed. When the coil is de-energized, the electromagnetic suction force is zero, the auxiliary valve plug and the supporting iron core are lifted up due to the action of the spring, the auxiliary valve opens, the main valve cup is pushed up by the pressure difference, the main valve opens, and the medium flows.
Main technical parameters of imported steam solenoid valve
Nominal diameter: DN1-200mm
Nominal pressure: PN1.0-6.4Mpa
Working pressure difference: 0.04-6.4Mpa
Working medium: steam, steam-water mixture, high temperature gas, oil
Medium temperature: ≤400℃
Rated voltage V: AC: 380, 220, 36, 24 DC: 220, 110, 36, 24
Power (AC220V): DN: 5-20 24VA DN: 65-150 50VA
Imported steam solenoid valve selection
a: Technical parameters such as power supply voltage, explosion-proof, protection grade of steam solenoid valve
b: The working mode of the steam solenoid valve
c: Pressure and temperature of the steam solenoid valve
d: Use medium of steam solenoid valve (name, viscosity, particle corrosivity, toxicity)

Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
