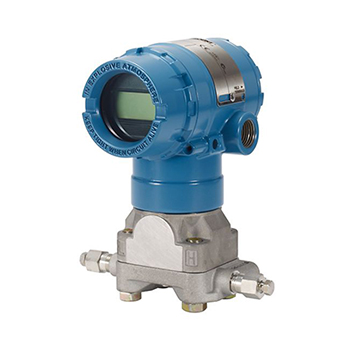

Rosemount ™ 2051 Coplanar ™ Pressure Transmitter
The Rosemount 2051 Coplanar pressure
transmitter complies with industry standards and is suitable for differential pressure and gauge pressure measurement. The
transmitter is safety certified and has a local operator interface with easy-to-use menus and built-in configuration buttons for easy commissioning of the device. The product incorporates patented co-planar technology, which provides greater flexibility for integrated pressure, flow or level solutions.
specification
Warranty Up to 5 years limited warranty
Turndown ratios up to 100: 1
Communication protocol 4-20 mA HART®, WirelessHART®, FOUNDATION ™ fieldbus, PROFIBUS®, 1-5 V low power HART®
Measurement range Differential pressure measurement up to 2000 psi (137.9 bar), gauge pressure measurement up to 2000 psig (137.9 bar)
Process wetted material 316L stainless steel, alloy C-276, tantalum
Basic diagnosis
Certifications IEC 61508-based SIL 2/3 certification, NSF, NACE® certification, hazardous location certification implemented by independent third parties
Features
Performance up to 0.05% of span accuracy
Patented coplanar technology allows equipment to be installed directly into pressure, flow or level solutions for installation flexibility
Can be fully assembled into a manifold, diaphragm seal, or primary flow element for direct installation
Local operator interface menus are easy to use, with built-in configuration buttons for streamlined commissioning
(Implemented by third parties) SIL 2/3 certification based on IEC 61508 and pre-use certification of FMEDA data for safe installations
