VLT2800

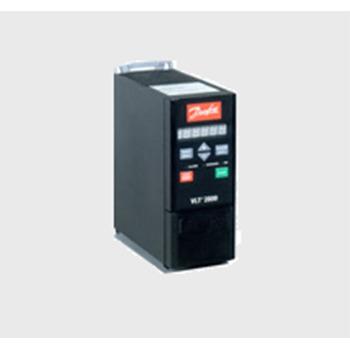

VLT® 2800 Series
The VLT® 2800 Series is one of the smallest and most versatile frequency converters on the market. Suitable for side-by-side installation, saving a lot of space. Optional motor
coils, RFI
filters, LC+1B
filters and more.
The VLT 2800 is an advanced general purpose drive that is easy to operate.
Its shortcut menu basically includes all the para
meters needed to debug the drive. It is quick and easy to install and maintain.
Features and benefits
Power range
0.55 - 18.5 kW (3 phase 380 -480 V ± 10%; 50/60 Hz)
0.37 - 1.5 kW (single phase and three phase available, 200 - 240 V ± 10%; 50/60 Hz)
2.2 -3.7 kW (3 phase 200 - 240 V ± 10%; 50/60 Hz)
Variable output frequency between 0 and 1000 Hz
Product safety
100% short circuit protection
100% ground fault protection
Main power transient protection
Input switching output switching
High and low voltage insulation
Designed according to EN 50178
Speed compensation stops accurately
Better process control
The stopping distance is the same regardless of the initial motor speed
Precise stop
Stop by interrupt control
Process repeatability is higher
Clearly defined stop
Technical parking
Accurate positioning
High frequency input (65 kHz)
24 V incremental encoder input
AB encoder input (optional)
Automatic motor tuning
Perfect match between motor and frequency converter
Measuring stator impedance (RS)
Better spindle performance
No need to apply torque during measurement
Check the motor for missing phase
Does not lower the rating at 45 ° C
The VLT800 will still operate normally when the ambient temperature reaches 45°, no need to lower the rating, and can be up to 40 ° C
The state works continuously.
Flexible installation
Horizontal installation
Vertical installation
True side-by-side installation
No degeneration will occur
The same is true for each module
Temperature controlled fan
Cooling plate technology
Reduced heat in the cabinet
More intensive installation
The cabinet is better sealed
Protection ability:
- dustproof
- Antifouling
- moisture proof
Heat is dissipated from the back of the inverter
communication
DeviceNet
ModBus RTU
Metasys N2
Profibus DP, option
Fieldbus system
Profibus DP, 3 or 12 Mbit/s
Up to 127 nodes per system
