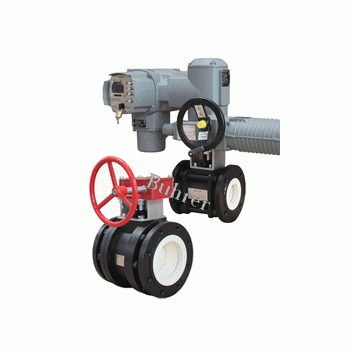

Product name: Imported ceramic ball valve Product model: Buhrer series
Drive method: manual, turbine, electric, pneumatic Connection form: flange, thread
Structure: floating ball, fixed ball Seal structure: ceramic
Pressure range: 1.6MPa-6.4MPa Nominal diameter: DN15-300
Common materials: WCB, forged steel, 304, 316, etc.
    Product introduction
  The imported ceramic ball valve produced by Breer can be driven by manual, turbine, electric, pneumatic, connection method can be flange, thread, structure type can be selected by floating ball, fixed ball, sealing structure can be selected by ceramic, pressure range PN1.6MPa -6.4MPa, the nominal diameter is DN15-300mm, the material can choose WCB, forged steel, 304,316, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
    Product Details
Imported ceramic ball valve can greatly improve the fluency and sealing of industrial piping systems. Improving the safety and stability of the supporting equipment operating system will play a positive role in promoting environmental protection and energy conservation. Structural ceramic materials have less deformation, and their tensile strength, compressive strength, and hardness are very high. With the technological innovation today, ceramic valves are more and more highly valued and recognized by domestic and international, and are widely used in thermal power plants, steel, petroleum, chemical, papermaking, bioengineering, and other industries. It is suitable for boiler steam, lime slurry, particle-containing seawater transportation, high hardness particles, soft particles and corrosive media, powder, flue gas desulfurization, ash, slag and water treatment. The material can be changed according to the purpose and can be used in different temperatures and media.
First, the thickness of the valve housing exceeds the data requirements of the DIN / ANSI / API / JIS standards, and the chemical elements and mechanical properties of the main body material meet the specified standards. The three-segment structure design of the shell has a solid shape and a beautiful appearance.
Second, the chemical elements of the valve stem material meet the national standard requirements, finely polished, and the surface is treated with anti-corrosion, nitriding or quenching and tempering to ensure the valve stem has good mechanical properties and corrosion resistance.
Third, the built-in buffer compensation elastic gasket to ensure stable and good sealing. And in the medium containing impurities, it is not easy to jam and cause the ball to break.
Fourth, all-lined hard sealing surface contact ceramic ball valve is in contact with the medium are structural ceramic materials, its chemical stability plus extremely high hardness (hardness HRA88 or higher, second only to diamond). Therefore, ceramics have high compressive strength, high wear resistance, excellent oxidation and corrosion resistance, high temperature resistance, and good thermal insulation properties.
V. Manufacture with precise grinding technology and advanced mechanical equipment. The structure of the valve is simple, the flow channel is smooth, and the medium flow resistance is small. The hard-sealed ceramic inner parts are composed of six scientific and reasonable designs. The ball and seat surfaces of the valve are processed in contact, which makes the ball and seat inner R and outer R tightly combined. , Small resistance, tightness to zero leakage.
material:
● Valve body: WCB, SS304, SS301, SS316, SS201, ductile iron
● Lined valve seat: PTFE
● Core: Zirconia / Silicone Nitrate
● Stem: 316 / 316L stainless steel, HC alloy, Monel alloy, structural ceramics.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
