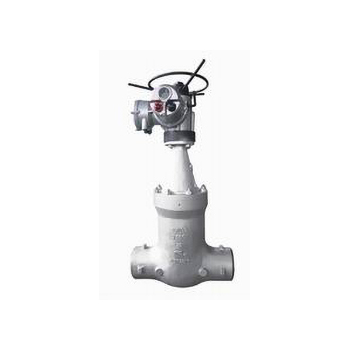

Product name: Imported high temperature and high pressure globe valve Product model:
Buhrer series
Drive method: manual, electric, pneumatic Connection: welding, flange
Structure: straight-through seal structure: self-tight seal
Pressure range: 150LB-3500LB Nominal dia
meter: DN6-600
Common materials: carbon steel, 304, 316, 316L, alloy steel, etc.
Product introduction
The imported high temperature and high pressure globe valve produced by Breer can be driven manually, electric, pneumatic, and welded, flanged as the connection method, straight-through structure can be selected, and self-tight seal can be used as the sealing structure. The pressure range is PN150LB-3500LB, The nominal dia
meter is DN6-600mm, and the material can be selected from carbon steel, 304, 316, 316L, alloy steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
High temperature and high pressure globe valve is suitable for ANSI CLASS 1500-3500LB, working -29 ～ 800 degrees of petroleum, chemical, thermal power stations and other working conditions of the pipeline, cut off or connect the medium. Applicable medium: water, petroleum, steam
Structural advantages and characteristics of high temperature and high pressure globe valve:
1. The product is designed and manufactured according to ANSIB16.34, E101 standards, and can be used directly with imported equipment.
2. The middle cavity of the valve adopts a self-tightening sealing structure. The higher the pressure in the inner cavity, the better the sealing performance. The two ends of the branch pipe are butt welded to meet different requirements of the connection.
3. The valve body and bonnet have sufficient strength and rigidity. The channel is smooth and the fluid resistance is small.
4. The sealing surfaces of the valve disc and the valve seat are made of STELLITE cobalt leather hard alloy. The sealing surface has high hardness, abrasion resistance, high temperature resistance, corrosion resistance, good abrasion resistance and long service life. ．
5. The valve stem is quenched and tempered and the surface is nitrided to have good corrosion resistance and abrasion resistance.
6, the valve cover stuffing box depth is reasonable, the packing plus corrosion inhibitor, reliable sealing, smooth switching.
7, the valve has an upper seal structure, to ensure that the valve does not leak outside the valve stem when running.
8. The opening and closing of the electric shut-off valve is controlled by electric equipment. The electric devices are equipped with special motors, reducers, torque control mechanisms, on-site operating mechanisms, manual and electric switching mechanisms. In addition to local operation, remote operation is also possible.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
