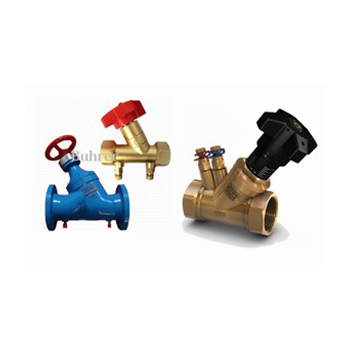

Product Name: Imported Balance Valve Product Model:
Buhrer
Drive method: manual, electric Connection: thread, flange
Structure: Balanced Seal structure: PTFE
Pressure range: 1.6-2.5MPa Nominal dia
meter: DN15-600
Common materials: brass, cast iron, WCB, stainless steel, etc.
Product introduction
The imported balance valve produced by Breel can be driven manually or electrically. The connection method can be threaded or flanged. The structure can be balanced or the sealing structure can be PTFE. The pressure range is PN1.6-2.5MPa. It is DN15-600mm, and the material can be brass, cast iron, WCB, stainless steel, etc. Because the valve is used in a very wide range, the same valve has different combinations in different situations and working conditions.
Product Details
The inlet balance valve is installed in the pipeline system, and the ratio of the characteristic resistance ratio of the system pipeline is adjusted by adjusting the balance valve to meet the design requirements. After the system is qualified, there is no static hydraulic imbalance. If the system that is qualified for commissioning is in a part-load operating state, when the total flow rate is reduced, each branch pipe adjusted by the balancing valve will automatically reduce the flow rate year-on-year, but the set flow ratio of each branch pipe will not change.
Material of main parts of imported balance valve
Part Name
Body and bonnet
Valve stem
Disc
Seal
material
Gray cast iron, ductile cast iron, cast steel, brass
Stainless steel, brass
Ductile iron, brass
Rubber asbestos sheet
Third, the main technical para
meters of the imported balance valve
Nominal pressure (MPa)
Shell test pressure (MPa)
proper temperature
Applicable medium
Characteristic curve
Installation scope
1.6
2.4
≤120 ℃
Non-corrosive liquids such as water and oil
Equal percentage
Pipeline system trunk, branch trunk, indoor water main, branch standpipe and multiple boilers
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
