details :

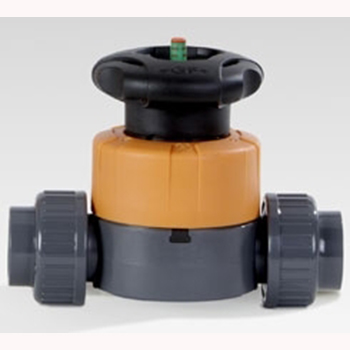

(1) GF Piping System's new generation of diaphragm valves sets new standards in safety, efficiency and ease of use;
(2) Instead of the usual four metal screws, it uses an intermediate union nut. This non-corrosive joint is characterized by consistent temperature behavior, uniform surface pressure and withstands high pressures of 16 bar;
(3) The optimized flow geometry achieves double the flow rate with the same energy consumption. The flow characteristics are almost linear, ensuring the stability of the working process;
(4) In addition to this, the nozzle of the branch valve is directly moved to the pipe wall of the main pipe. In this way, the single flow tube is greatly reduced and thus the sanitary condition is improved;
(5) Standard equipment such as lockable steering wheels, two-color indicators and self-adjusting limit switch interfaces establish new standards in terms of ease of use;
Application areas:
· Chemical Industry
· life sciences
· Microelectronics
· Water treatment
· food and drinks
· Measurement and control
· Uses involving high viscosity and solid materials
Advantage:
· Corrosion resistant, high pressure resistant
· Double flow rate and linear characteristics of the valve for high efficiency
· Control single flow tube to a minimum
· Easy to operate with lockable steering wheel and two-color indicator
· Wide range of materials for optimum chemical resistance
· Can flow in either direction, independent of the mounting position
· Integrated fastening system with threaded insert for mounting
· Suitable for mud and abrasive media
Option:
· Self-adjusting electrical feedback device
· Multiple user-specific execution scenarios can be generated through the configurator
· Available in pneumatic version, see DIASTAR
product:
· Type 514 - with true union connection
· Model 515 - with tube end
· Type 517 - with flange connection
· Type 519 - Branch valve
standard:
· ISO, BS, ANSI, ASTM, JIS
Range: d16 DN10 to d63 DN50
connection:
Type 514: Joint with a solvent glue sleeve, a threaded sleeve, a welded sleeve, and a welded tube end
Model 515: Solvent hose end, sleeve welded pipe end, welded pipe end
Type 517: Fixed flange, movable flange
Type 519: Splicing end
Nominal pressure:
PN16* for SYGEF Standard, SYGEF Plus, PVC-U special configuration
PN10 for PVC-C, PVC-U, ABS, PROGEF Standard, PROGEF Natural
Material: PVC-U, PVC-C, ABS, PROGEF Standard, PROGEF Natural, SYGEF Standard, SYGEF Plus
Seal: EPDM, PTFE, FPM, NBR, IIR
Accessories: Multi-function module with electrical feedback
* The nominal pressure can be reduced to PN10, depending on the end connection
