Name: Imported pneumatic thread ball valve Model:
Regus Caliber: DN15-50 Pressure: 0.6-6.4MPa Material: WCB, 304, 316
British

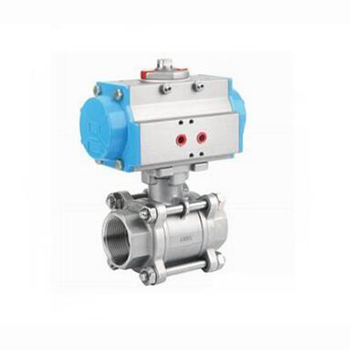

Regus Regus imported pneumatic thread ball valve
The internal thread connection ball valve and the butt welding connection ball valve are divided into an integral type, a two-stage type and a three-stage type. The valve body casting adopts the advanced technology of the United Kingdom, with reasonable structure and beautiful appearance. The valve seat adopts elastic sealing structure, which is reliable in sealing and easy to open and close. The valve stem adopts a bottom-loaded structure with an inverted seal, and the valve stem is not impacted when the valve cavity is abnormally boosted. The 90° switch positioning mechanism can be set and locked as needed to prevent misoperation. Internal thread connection is not suitable for valve and butt welding ball valve for PN1.0～4.0MPa, working temperature -29～180°C (sealing ring is reinforced PTFE) or -29～300°C (sealing ring is para-polybenzene) On various pipelines, it is used to cut off or connect the medium in the pipeline. Different materials can be used for water, steam, oil, nitric acid, acetic acid, ammonia brine, neutralized water and other media.
Welded connection ball valves are divided into one-piece, two-stage and three-stage. The valve body is made of British advanced technology, with reasonable structure and beautiful appearance.
British
Regus Regus imported pneumatic thread ball valve definition:
English name;pneumatic ball valve
As the name implies, the pneumatic ball valve is a ball valve equipped with a pneumatic actuator. The pneumatic actuator performs at a relatively fast speed, and the fastest switching speed is 0.05 seconds/time, so it is usually called a pneumatic quick cut-off ball valve. Pneumatic ball valves are usually equipped with various accessories, such as solenoid valves, gas source treatment triples, limit switches,
positioners, control boxes, etc., to achieve local control and long-distance centralized control, and the valve can be controlled in the control room. There is no need to go to the field or bring manual control at high altitude and danger, which saves a lot of human resources and time and safety.
Pneumatic ball valves only need to be rotated 90 degrees with a pneumatic actuator and a small torque can be closed tightly. The fully equal valve body cavity provides a small, straight-through flow path for the medium.
Ball valves are generally considered to be the most suitable for direct opening and closing. The main features of the ball valve are its compact structure, easy operation and maintenance, suitable for general working media such as water, solvent, acid and natural gas, and also suitable for medium with harsh working conditions such as oxygen, hydrogen peroxide, methane and ethylene. The ball valve body may be integral or combined.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
