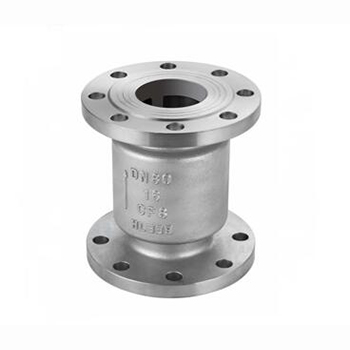

Name: Imported vertical check valve Model: Regus Caliber: DN25-300 Pressure: PN10-PN250 Material: WCB, 304, 316

British Regus Regus imported vertical check valve

Due to the pressure of the inlet end medium in the line, the valve is opened or closed against the spring resistance. When the inlet end medium pressure is lower than the outlet end, the spring pushes the valve core toward the valve seat to close the valve, preventing the medium from flowing backward, so as to stop the action. Vertical check valves are widely used in chemical, liquefied petroleum gas, fluid and other industries. The check valve is divided into structures according to the structure, and can be divided into three types: lift check valve, swing check valve and butterfly check valve.

British Regus Regus imported vertical check valve definition:

The vertical check valve refers to a valve that automatically opens and closes the valve flap by means of the flow of the medium itself, and is used to prevent the back flow of the medium, which is also called a check valve, a check valve, a reverse flow valve, and a back pressure valve. The check valve is an automatic valve whose main function is to prevent backflow of the medium, prevent the pump and drive motor from reversing, and discharge the container medium. The check valve can also be used to supply a line in which the pressure may rise to an auxiliary system that exceeds the system pressure. The check valve can be mainly divided into a swing type check valve (rotation according to the center of gravity) and a lift check valve (moving along the axis).

The function of this type of valve is to only allow the medium to flow in one direction and prevent the direction from flowing. Usually, the valve is automatically operated, and the valve flap is opened by the fluid pressure flowing in one direction; when the fluid flows in the opposite direction, the fluid pressure and the self-reclosing valve flap of the valve disc act on the valve seat to cut off the flow.

Among them, the internal thread check valve and the butterfly check valve belong to this type of valve, and include a swing type check valve and a lift check valve. The swing check valve has a hinge mechanism and a door-like flap that rests freely against the inclined seat surface. In order to ensure that the valve flap can reach the proper position of the valve seat surface each time, the valve flap is designed in the hinge mechanism, so that the valve flap has enough swinging space and the valve flap is truly and comprehensively in contact with the valve seat. The flaps can all be made of metal, or they can be inlaid with leather, rubber, or synthetic coverings depending on the performance requirements. With the swing-open check valve fully open, the fluid pressure is almost unimpeded, so the pressure drop across the valve is relatively small. The valve flap of the lift check valve is located on the valve seat sealing surface of the valve body. In addition to the flap being free to lift and lower, the valve is like a shut-off valve. The fluid pressure causes the flap to lift from the seat sealing surface. The backflow of the medium causes the flap to fall back onto the seat and shut off the flow. Depending on the conditions of use, the flap can be of all metal construction or it can be in the form of a rubber or rubber ring on the valve disc holder. Like the shut-off valve, the passage of fluid through the lift check valve is also narrow, so the pressure drop through the lift check valve is larger than that of the swing check valve, and the flow rate of the swing check valve is limited. Very few.

Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)

QQ: 2030185432

Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
