Name: Import Swing Check Valve Model:
Regus Caliber: DN10-50 Pressure: PN10-PN63 Material: 304, 316
British

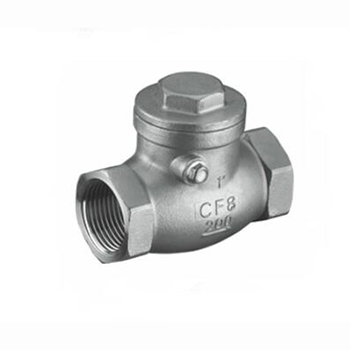

Regus Regus imported swing check valve
The swing check valve is also called a check valve or a check valve, and its function is to prevent the medium in the pipeline from flowing backward. The valve of the opening and closing member is opened or closed by the flow of the medium and the force to prevent the back flow of the medium from being called a check valve. The check valve is an automatic valve type, mainly used for the one-way flow of the medium, only allowing the medium to flow in one direction to prevent accidents. This type of valve should generally be installed horizontally in the pipeline.
British
Regus Regus imported rotary check valve technology definition:
Swing check valve is suitable for nominal pressure PN1.0MPa~42.0MPa, Class150-2500; nominal dia
meter DN15~1200mm, NPS1/2~48; working temperature -196~540°C for various pipelines, used to prevent The media is reversed. By using different materials (WCB, CF8(M), CF3(M), 1Gr5Mo, 15CrMo1V, it can be applied to various media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing medium and urea. Oil, chemical, pharmaceutical, fertilizer, electricity and other pipelines.
The swing-type check valve adopts the built-in rocker arm swinging structure. All the opening and closing parts of the valve are installed inside the valve body, and do not penetrate the valve body, except for the sealing gasket and the sealing ring of the middle flange part, the whole There is no leakage point to prevent the possibility of valve leakage. The swing-type check valve has a spherical connection structure at the joint of the rocker arm and the valve flap, so that the valve flap has a certain degree of freedom within a range of 360 degrees, and has appropriate micro-position compensation.
Suitable for clean media, not suitable for media containing solid particles and high viscosity.
Professional manufacturing and professional services, KUNAG creates more value for you
Continuously improving the quality of services and keeping improving, "sincere service" is the eternal theme of KUNAG. Kunag strictly complies with the requirements of ISO9001-2000 quality system certification, strictly controls the quality and responsibilities to the people to ensure the healthy operation of production, sales and service. To strengthen communication with customers and to provide our customers with quality products and perfect service, we hereby make the following commitments:
Product Standards
Products are designed, manufactured, and inspected strictly in accordance with China\'s GB, HG standards, and US API standards. The hardness of the sealing surface meets the national requirements and the width exceeds the national standard.
pre-sale service
Product introduction, technical communication, non-standard product design, troubleshooting.
Sale service
Trustworthy contracts, guarantee timely delivery, and keep in touch with customers at any time.
For special or complex products, our factory arranges technicians to train and guide users on product use, troubleshooting, tuning and maintenance.
After sales service
The warranty period of Weitong products is 12 months from the factory, and the "three guarantees" service (return, replacement, repair) is implemented.
During the use of our products, our factory regularly organizes technical and inspection personnel to visit and solicit user feedback on product quality, use conditions, and improvement opinions in order to further improve product quality.
Quickly respond to customer complaints about product quality problems, and after-sales service personnel rushed to the scene within 24-36 hours (48 hours outside the province).
For after-sales service, users are required to fill in the quality feedback form after the service and make appraisal opinions, while improving Guardian\'s service quality.
Order process
Landline: 021-59718851 (AM-8: 30 to PM-17: 30)
Mobile phone: 18918462396 (WeChat same number 24-hour service)
QQ: 2030185432
Email: kunage@126.com
Receive customer purchase list, provide customers with valve model selection and quotation (price list).
Specific agreement: delivery time, special requirements, etc.
download Google:
Customers have special requirements for products, and must provide the following instructions in the order contract:
(1) Structure length;
(2) Connection form;
(3) Nominal diameter, full diameter, reduced diameter, pipe size;
(4) Operating medium, temperature and pressure range;
(5) Experiment, inspection standards and other requirements;
(6) Various driving devices can be configured in this field according to the special requirements of customers;
If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract under the conditions that the supply and demand sides understand and agree.
∷
