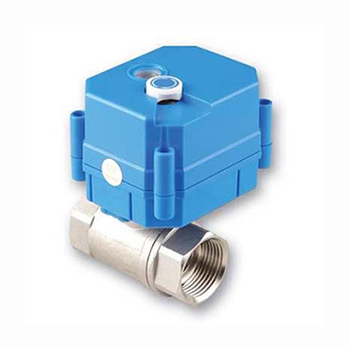

SMS-TORK产品土耳其 S9190 (TORK-RMEA) MINI MOTORIZED BALL VALVES

GENERAL DETAILS

9190 Series / Electric Motorized Ball Valves ( 5 sec open-close)

Application

:

Heating Cooling HVAC application. Water treathment, cHemical proces,automation systems.
High viscosity and dirty liquid, 0 bar proces
Domestic heating and cooling systems, manuel open-close avalaible

Size

:

1/2", 3/4", 1"

Body

:

Standard Stainless Steel on request Brass Body

Way

:

2 way, 3 way

Temperature

:

0°C …100°C water, hot water

Working Voltage

:

220 V AC, standard

Optionel 1

:

24 V DC and AC

Optionel 2

:

On request :5V, 12V, 110V AC/DC

Open-close

:

5 - 7 Sec

PRODUCT DETAILS

220 V AC 50Hz Motoriz 2 Way Stainless Steel Ball Valves
Type No	Size	Working Voltage	Control Type	Working Pres	Working Temp.	Open-Close	Weight (Kg)
S9190.02.220	1/2"	220VAC	On/Off	10 Bar	0°C -100°C	5 Saniye	0.37
S9190.03.220	3/4"	220 V AC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.52
S9190.04.220	1"	220 V AC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.52

24 V AC / DC Motorized 2 Way Stainless Steel Ball Valves,
Type No	Size	Working Voltage	Control Type	Working Pres	Working Temp.	Open-Close	Weight (Kg)
S9190.02.024	1/2"	24 V AC/DC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.37
S9190.03.024	3/4"	24 V AC/DC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.52
S9190.04.024	1"	24 V AC/DC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.52

220 V AC 50 Hz Motorize Valve, 3 Way Stainless Steel Body Ball Valve
Type No	Size	Working Voltage	Control Type	Working Pres	Working Temp.	Open-Close	Weight (Kg)
S9290.02.220	1/2"	220 V AC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.37
S9290.03.220	3/4"	220 V AC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.52
S9290.04.220	1"	220 V AC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.52

24 V AC / DC Motorize Valve, 3 Way Stainless Steel Body Ball Valve
Type No	Size	Working Voltage	Control Type	Working Pres	Working Temp.	Open-Close	Weight (Kg)
S9290.02.024	1/2"	24 V AC/DC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.37
S9290.03.024	3/4"	24 V AC/DC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.52
S9290.04.024	1"	24 V AC/DC	On / Off	10 Bar	0°C -100°C	5 Saniye	0.52
