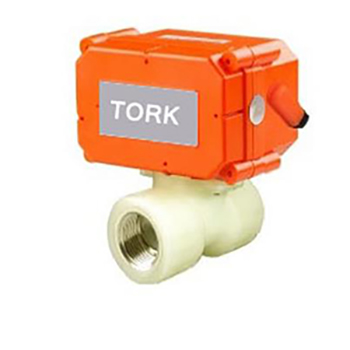

S93 90 Serie Mini motorized valves, ( It is recommended instead of Solenoid Valve for same liquid).
| S93 90 Series / Motorized Valve | ||||||||||||||
| Application | : |
Heating Cooling HVAC applications, chemical process,automation systems. |
||||||||||||
| Size | : | 1/2" | ||||||||||||
| Body | : | Standard: Resizted of agresiv media PP + GP | ||||||||||||
| Way | : | 2 way, | ||||||||||||
| Luquid temp. | : | 20°C …80°C water , hot water | ||||||||||||
| Working temp. | : | 220 V AC, standard , IP67 | ||||||||||||
| On request 1 | : | :5V, 12V, 24 V AC/DC | ||||||||||||
| Life open / close | : | 30.000 open-close | ||||||||||||
| open/close time | : | 1 sec | ||||||||||||
| 220 V AC 50Hz Motorlized Valve, (2Way, Stainless Steel Body Ball Valve) | |||||||
| Type No |
Size |
Voltage | Control | Pressure | Temperature | Open Close time | Weight (Kg) |
| S9390.01.220 | 1/4" | 220 V AC | On / Off | 6 Bar | 0°C -100°C | 1 Sec | 0.26 |
| 24 V AC / DC Motorized Valve (2Way, Stainless Steel Body Ball Valve) | |||||||
| Type No |
Size |
Voltage | Control | Pressure | Temperature | Open Close time | Weight (Kg) |
| S9390.01.024 | 1/2" | 12/24 V AC/DC | On / Off | 6 Bar | 0°C -100°C | 1 Saniye | 0.26 |
