GENERAL DETAILS

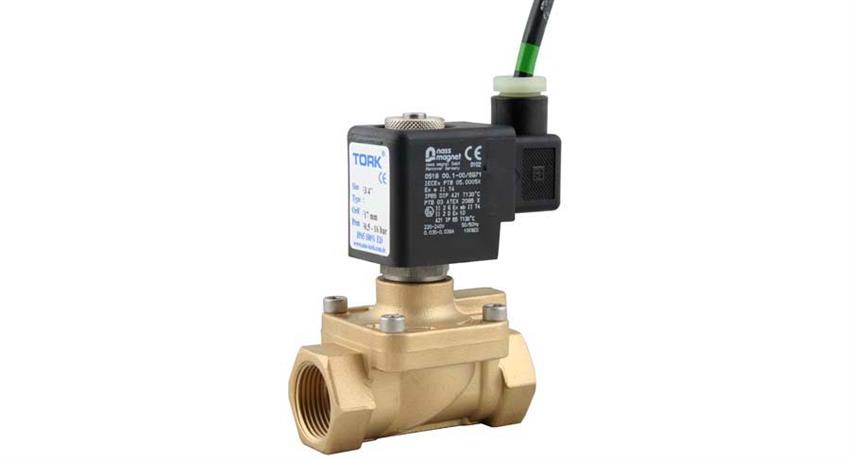

S7360 Series ( TORK-ExMI ) General Purpose Solenoid Valves
| Application | : | Air, water, gas | ||||||||
| Size | : | 1/8" … 1" BSP (on request NPT) | ||||||||
| Pressure | : | 0,3 bar … 12 bar | ||||||||
| Tube and internal part | : | Brass, Stainless Steel | ||||||||
| Body | : | Brass | ||||||||
| Seal | : | NBR, on request EPDM | ||||||||
| Temperature | : | .-10°C…80 °C | ||||||||
| Position | : | Normally Closed (on request N.O open for air) | ||||||||
| Coil Voltage | : | 230V, 110V , 24V , 12V AC, 24V , 12 V DC (5.5 watt) | ||||||||
| Protection Class | : | IP65 ve Exproof models (E Ex.md.II.T4, ATEX) | ||||||||
