| Application | : | Liquid, acid, air | ||||||||||||
| Type No | : | PAV 913…DA / PAV 913 SR | ||||||||||||
| On Request | : | Limit switch box, positioner, namur solenoid valve, manuel override | ||||||||||||
| Actuator | : | RA…DA Double Acting Actuators / RA…SR Single Acting Actuators | ||||||||||||
| Air Supply | : | 4-6 bar, Stroke adjustment | ||||||||||||
| Valve Code | : | TORK-KV 913 | ||||||||||||
| Valve Body Material | : | U-PVC | ||||||||||||
| Connection | : | Threaded | ||||||||||||
| Pressure | : | PN 10 | ||||||||||||
| Size | : | DN 15 … DN 100 | ||||||||||||

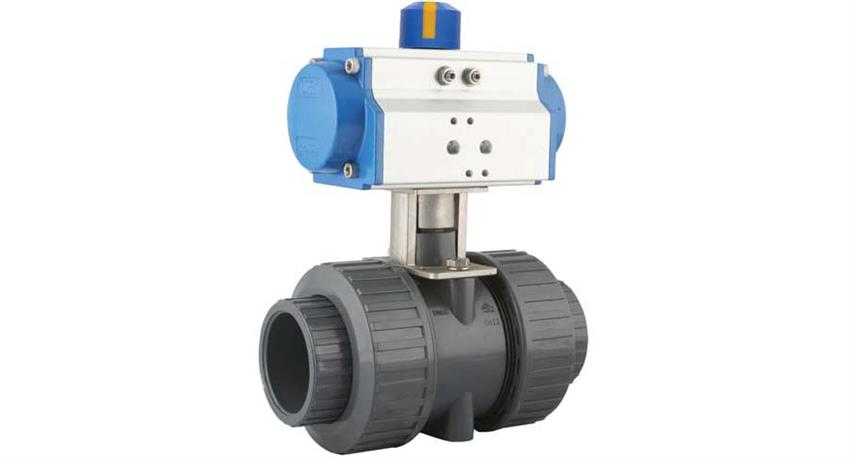

| TORK-PAV 913 Pneumatic Actuated PVC Ball Valves, 2/2 Way , Threaded |
| Connection Size | Order Number | Way | Pressure | Temperature | ISO Standart |
| DN15 | TORK-PAV 913.15SR/DA | 2/2 | PN 10 | -20..80 C | F03 |
| DN20 | TORK-PAV 913.20SR/DA | 2/2 | PN 10 | -20..80 C | F03 |
| DN25 | TORK-PAV 913.25SR/DA | 2/2 | PN 10 | -20..80 C | F03 /F04 |
| DN32 | TORK-PAV 913.32SR/DA | 2/2 | PN 10 | -20..80 C | F04 /F05 |
| DN40 | TORK-PAV 913.40SR/DA | 2/2 | PN 10 | -20..80 C | F04 /F05 |
| DN50 | TORK-PAV 913.50SR/DA | 2/2 | PN 10 | -20..80 C | |
| DN65 | TORK-PAV 913.65SR/DA | 2/2 | PN 10 | -20..80 C | |
| DN80 | TORK-PAV 913.80SR/DA | 2/2 | PN 10 | -20..80 C | |
| DN100 | TORK-PAV 913.100SR/DA | 2/2 | PN 10 | -20..80 C | |
