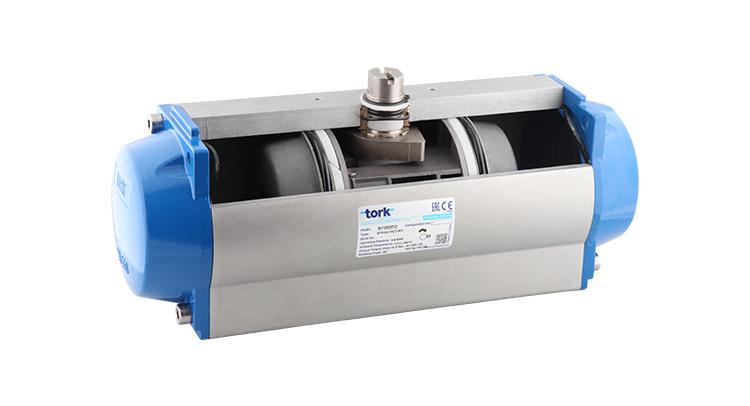

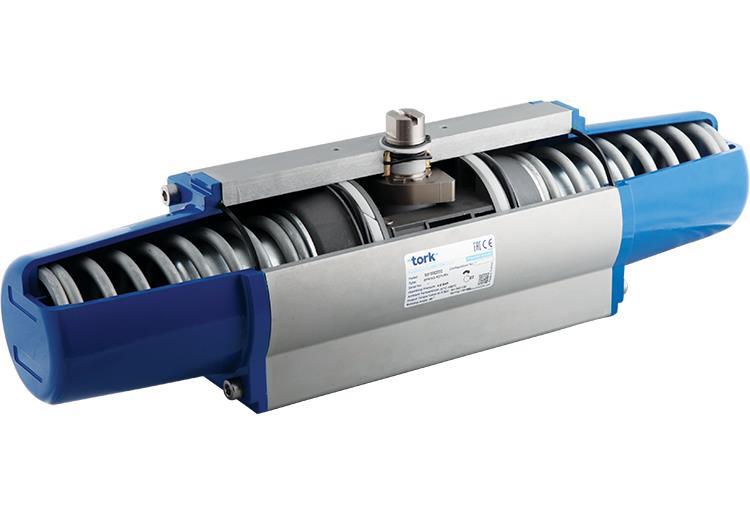

| Type | : | Scotch Yoke | |||||||||
| Code | : | TORK-SC YK | |||||||||
| Rotating Angle | : | 90º | |||||||||
| Output Tork Value | : | 11 Nm … 6000 Nm | |||||||||
| Body | : | Aluminum Alloy | |||||||||
| Caps and Pistons | : | Aluminum Alloy | |||||||||
| Temperature | : | -10ºC … 60ºC | |||||||||
| Valve Connection | : | ISO 5211 / DIN3337 standard | |||||||||
| Limit Switch Connection | : | Namur standard, VDI / VDE3845 | |||||||||
| Positioner Connection | : | Namur standard, VDI / VDE3845 | |||||||||
| Solenoid Valve Connection | : | Namur standard, VDI / VDE3845 | |||||||||
| Stroke Adjustment | : | Both directions open and close positions ( ±5%) | |||||||||
| Certificate | : | CE , ATEX, LOYD | |||||||||
