GENERAL DETAILS

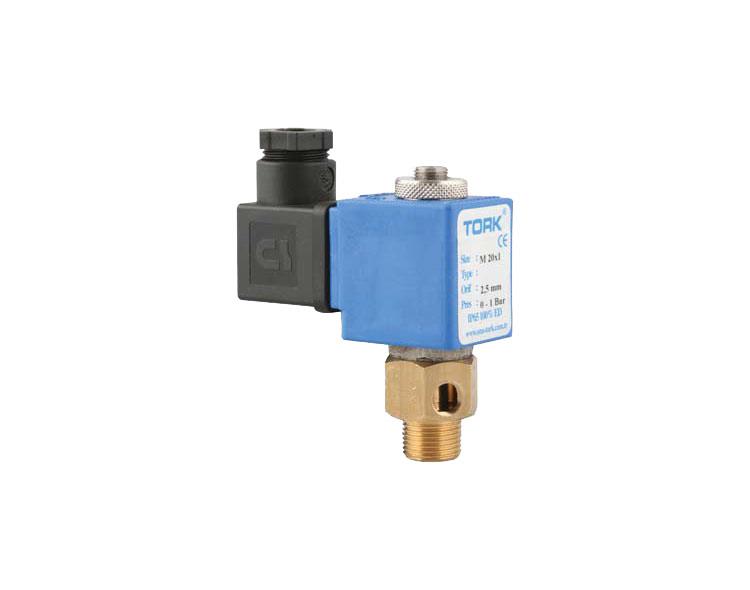

S1070 Series ( TORK-GH1) General Purpose Solenoid Valves, NC
| Application | : | Air, Water, | ||||||||
| Size | : | 3/8" BSP (on request NPT) | ||||||||
| Pressure | : | 0 Bar … 1 Bar | ||||||||
| Tube and internal part | : | Stainless Steel | ||||||||
| Body | : | Brass | ||||||||
| Seal | : | NBR | ||||||||
| Temperature | : | .-10°C…80 °C | ||||||||
| Position | : | Normally Closed | ||||||||
| Coil Voltage | : | 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC | ||||||||
| Protection Class | : | IP65 ve Exproof models | ||||||||
SPECIFICATION
| Valve Type / Order No | Connection Size | Orifice Size (mm) | Pressure (bar) | KV lt/ min | Fluid Temperature | Seal | Weight (kg) | |||
| Min | Max | Min | Max | |||||||
| S1087 | 3/8" | 6 | 0 | 1 | 7 | -10 | 80 | NBR | 0,41 | |
| S1088 | 3/8" | 2.5 | 0 | 1 | 3.2 | -10 | 80 | 0.53 | ||
