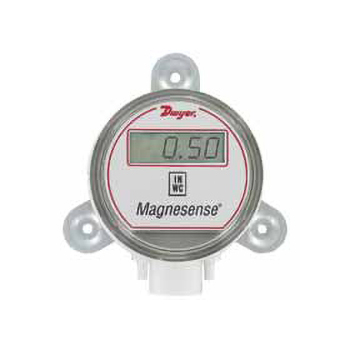

MS系列 Magnesense®微差压变送器
产品说明：
测量风压或风速
MS系列 Magnesense®微差压变送器用途广泛，可用于监测微压/微差压/真空，和监测风速/风量。它的功能包括：可现场选择公制/英制工程单位，可现场加装LCD数显，可调整输出信号的阻尼系数，当和皮托管或其它差压风速传感器配合测量风速风量时，可选择开方输出。
磁感应技术使得Magnesense®微差压变送器性能优异，稳定可靠。可用于所有的微差压，风速风量测量的应用场合。
• 现场升级为LCD数显无需仓储两台不同的变送器，只需移除前盖，将LCD组件插入，就现场组装了一台带数显的变送器，可轻松满足用户的需求。
• 现场可选量程不管是英制或公制。无需太多的仓储量，你总有能满足量程要求的变送器。
• 数字按键校准零点和量程取代传统的电位器校准的方式，大大节约了校准时间，降低了维护成本。
• 可调数字阻尼用于平滑频繁波动的压力，常用于气流监控应用场合。
• 可现场改为风速型用于风机等应用场合。可采用平方根输出直接显示fpm或m/s风速。无需用智能可编程显示仪或PLC来换算差压成风速。不仅节约硬件成本，而且减少安装时间。
产品规格：
Service: Air and non-combustible compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1% for 0.25" (50 Pa), 0.5" (100 Pa), 2" (500 Pa), 5" (1250 Pa), 10" (2 kPa), 15" (3 kPa), 25" (5 kPa) ±2% for 0.1" (25 Pa), 1" (250 Pa) and all bidirectional ranges.
Stability: ±1% FS/year.
Temperature Limits: 0 to 150°F (-18 to 66°C).
Pressure Limits: 1 psi maximum, operation; 10 psi, burst.
Power Requirements: 10 to 35 VDC (2-wire); 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire).
Output Signals: 4 to 20 mA (2-wire); 0 to 5 V, 0 to 10 V (3-wire).
Response Time: Field adjustable 0.5 to 15 sec. time constant. Provides a 95% response time of 1.5 to 45 seconds.
Zero & Span Adjustments: Digital push button.
Loop Resistance: Current output: 0-1250 Ω max; Voltage output: min. load resistance 1 kΩ.
Current Consumption: 40 mA max.
Display (optional): 4 digit LCD.
Electrical Connections: 4-20 mA, 2-wire: European Style Terminal Block for 16 to 26 AWG. 0-10 V, 3-wire: European Style Terminal Block 16 to 22 AWG.
Electrical Entry: 1/2" NPS Thread. Accessory: Cable Gland for 5 to 10 mm diameter cable.
Process Connection: 3/16" (5 mm) ID tubing. Maximum OD 9 mm.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Diaphragm in vertical position.
Weight: 8.0 oz (230 g).
Agency Approvals: CE.
