| TORK-KV 912F Series Carbon Steel Ball Valve, Flanged Connection,2/2 way(for Naturalgas ) | |||||
| TORK-KV 912D Series Carbon Steel Ball Valve, Threaded Connection,2/2 way(for Naturalgas ) | |||||
| TORK-KV 920F Series Sphero Cast Iron Ball Valve, Flanged Connection,2/2 way(for Naturalgas ) | |||||
| TORK-KV 920F Series Sphero Cast Iron Ball Valve, Threaded Connection,2/2 way(for Naturalgas ) | |||||

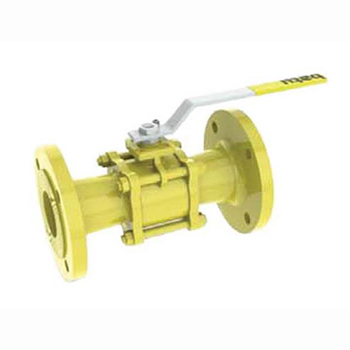

| TORK-KV912F SERIES | : | Sphero Cast Iron Body or Carbon Steel Ball Valve,Flange Connection,2/2 way (Naturalgas) | |||
| Handle Type | |||||
| ISO 5211 Actuator Mount Head Flange Series | |||||
TECHNICAL SPECIFICATION |
|||||
| Usage Areas | : | Water,hot water,steam,pressured air,oils,hydrocarbons,gas | |||
| Product Code | : | TORK-KV 907F Flange Connection, TORK-KV907K with Handle Carbon Steel 2/2 way Balll Valve | |||
| Body | : | Full Bored, Sphero Cast Iron or Carbon Steel, Three piece, Thread Connection, Flange Connection | |||
| Direction | : | 2/2 way, mounted with all position and let the fluid for both way | |||
| Seal | : | PTFE covered sphere and also Neckle covered with two PTFE seals | |||
| Pressure | : | Designed for High Pressure and Low Pressure | |||
| Operation Temparature | : | -20°C…..+ 180°C | |||
| Operation Pressure | : | PN25,PN 40 bar (NW15……NW250 ) | |||
| Testing | : | 48 Hours testing with 20 bar for all valve | |||
|
TORK-KV907F.Series 2/2 Way Carbon Steel Bal Valves |
| Connection Size | Order No | Way | Pressure | Temperature | ISO Connection |
| NW15 | TORK-KV912F.15 | 2/2 | 0-16 bar | -30..180 C | F03 |
| NW20 | TORK-KV912F.20 | 2/2 | 0-16 bar | -30..180 C | F03 |
| NW25 | TORK-KV912F.25 | 2/2 | 0-16 bar | -30..180 C | F03 /F04 |
| NW32 | TORK-KV912F.32 | 2/2 | 0-16 bar | -30..180 C | F04 /F05 |
| NW40 | TORK-KV912F.40 | 2/2 | 0-16 bar | -30..180 C | F04 /F05 |
| NW50 | TORK-KV912F.50 | 2/2 | 0-16 bar | -30..180 C | F05 |
| NW65 | TORK-KV912F.65 | 2/2 | 0-16 bar | -30..180 C | Special |
| NW80 | TORK-KV912F.80 | 2/2 | 0-416ar | -30..180 C | Special |
| NW100 | TORK-KV912F.100 | 2/2 | 0-16 bar | -30..180 C | Special |
| NW125 | TORK-KV912F.125 | 2/2 | 0-16 bar | -30..180 C | Special |
| NW150 | TORK-KV912F.150 | 2/2 | 0-16 bar | -30..180 C | Special |
| NW200 | TORK-KV912F.200 | 2/2 | 0-16 bar | -30..180 C | Special |
