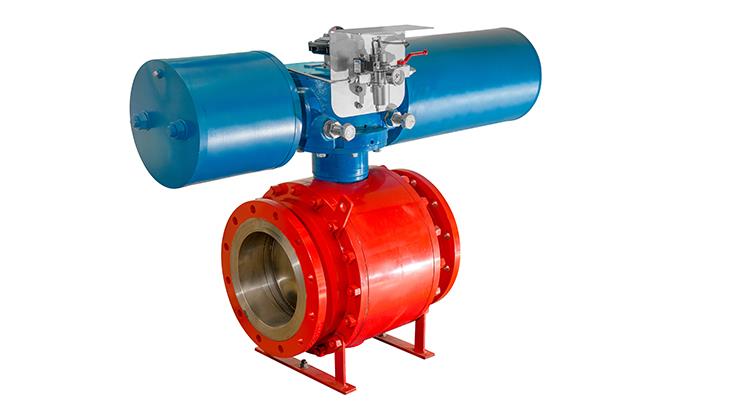

| THDA-ET Series Heavy Duty Pneumatic Actuators (Scotch Yoke Type) | ||
| Application | : | Heavy industry sector works with Scotch Yoke actautors. |
| Oil and oil industry, power plants, chemical processing lines, iron and steel industry, | ||
| Gas pressure reducing stations and storage, | ||
| Water transport lines, dams, ship industry, | ||
| Purification and sewage lines, etc. | ||
| Actuator types | : | Scotch Yoke actuator have 3 types |
| ET-S / C Series Ball Valve, Butterfly Valve, Plug Valve and for teh other 90-degree rotating mechanism. | ||
| ETL Series is designed for the control of Globe and Gate valves. | ||
| ET-S / C / L Series is produced in our factory with the hydraulic manual override, limit switch box, positioner and air tube. | ||
| Certificates | : | EX H 2 GD c NC ATEX , CE0036, PED |
| Double Acting Series Model No | Working Pressure | Output Torque Value |
| ETS.40 | 6 bar | 500 Nm |
| ETS.50 | 6 bar | 1000 Nm |
| ETS.58 | 6 bar | 1900 Nm |
| ETS.65 | 6 bar | 3500 Nm |
| ETS.85 | 6 bar | 9500 Nm |
| ETS.100 | 6 bar | 14000 Nm |
| ETS.130 | 6 bar | 35000 Nm |
| ETS.160 | 6 bar | 40000 Nm |
| ETS.160W | 6 bar | 59000 Nm |
| ETS.200W | 6 bar | 150000 Nm |
| ETS.270W | 6 bar | 250000 Nm |
