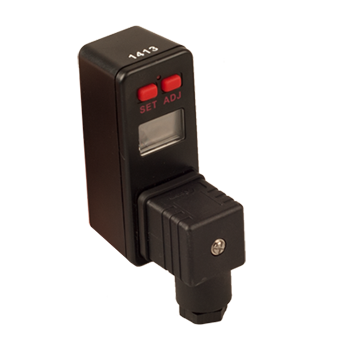

GEM-T & T1 | Digital dual & global timer condenser
Operating temp: -10° to 50°C
Memory: Flash memory to store program
Manual override: Press keys for 2 seconds
Programming: Possible without connection to power supply
Valve specifications See table
Pressure See table
• Higher pressures are available
Digital Dual Condenser
Timer (T)
Time ranges
Off : 0-99.59 mins
On : 0-59 sec
Digital Global Condenser
Timer (T1)
Time ranges
Off : 0-24 hrs
On : 0-24 hrs
Electrical connection • AMP pins, DIN 46242,
• 2 poles + 1 earth
Ambient temperature -10ºC to 50ºC
Operation *
• Flash memory to store programme
• Automatic sleep mode when no power detected
• Can be programmed without connection to
power supply
*see manual for all options
Weight 64 gr.
Digital Display Count down ON and OFF times.
Manual override : press keys for 2 seconds.
Time Adjustment
• Press SET for 2 seconds
• Press ADJ to adjust ON time
• Press SET
• Press ADJ to adjust OFF-time seconds
• Press SET
• Press ADJ to adjust OFF-time minutes
• Press SET
Voltage Voltage and power consumption - see table
Standard / Certification CE
Standard protection class IP65 when installed with a connector on coil
