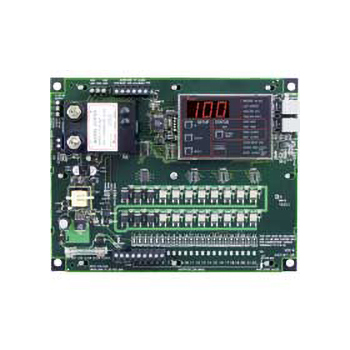

DCT1000DC系列袋式除尘器专用定时控制器
产品说明：
用于低电压的应用场合
DCT1000DC系列袋式除尘器专用定时控制器可根据现场的需要自动反吹。用于连续定时反吹或需要自动反吹的应用场合。有了DCT1000DC就不需要其它装置，象差压开关，继电器和定时器等。
DCT1000DC采用10-30 VDC电源，它可以连续定时反吹，或者配合DCP差压模块一起使用来自动反吹。 DCP差压模块中带有4-20mA的输出信号，无需再顾买差压变送器。如果电磁阀有问题或不正常，电磁阀故障指示灯会亮起。
6通道，10通道和22通道的DCT1000DC定时控制器的尺寸大小是一样的。标准化的设计非常实用方便。DCT1000DC可以采用DCA电缆来进行通道拓展，可连接多个多通道的控制器。
产品规格：
DCT1000DC TIMER CONTROLLER:
Output Channels: 6, 10 & 22 channels.
Power Requirements: 10-30 VDC.
Power Consumption: 5 W.
Solenoid Supply: 3A maximum per channel.
Fuse: 3 A @ 250 VAC.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Storage Temperature Limits: -40 to 176°F (-40 to 80°C).
On-time: 10 msec to 600 msec, 10 msec steps.
On-time Accuracy: ±10 msec.
Off-time: 1 second to 255 seconds, 1 second steps.
Off-time Accuracy: ±1% of the value or ±50 msec, whichever is greater.
Weight: 1 lb, 3.0 oz (538.6 g).
Agency Approvals: CE.
DCP PRESSURE MODULE:
Pressure Ranges: 10" w.c. or 20" w.c.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Pressure Limits: 10 psi (68.95 kPa).
Pressure Limits (differential): 10 psi (68.95 kPa).
Accuracy: ±1.5% F.S. @ 73°F (22.8°C).
Output Signal: 4-20 mA.
Alarm Contacts: 1.5A inductive load, 3A resistive load @ 30 VAC or 40 VDC.
Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing.
Weight: 5.5 oz (155.9 g).
