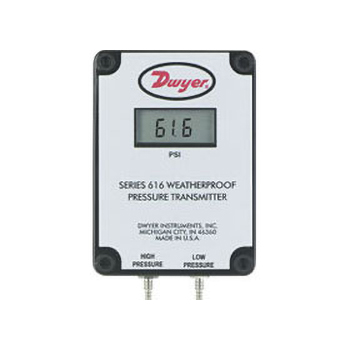

616W系列微差压变送器
产品说明：
NEMA 4X防护，精度为0.25%，量程范围从0 - 1英寸水柱到0 - 100psid
616W系列微差压变送器能够测量正压，负压和差压，精度为0.25%。它采用聚碳酸酯外壳，NEMA 4X（IP66）的防护，用于监测空气或其它兼容气体，输出4-20mA。
两线制的设计，多种量程范围可以选择，工厂会在出厂前校准。量程和零点可在校准时调整，但它不能大幅度改变量程。可选LCD数显用于现场显示（如果不需要LCD显示，去掉后面的后缀）。
产品规格：
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.25% FS @ 77°F (25°C), display accuracy ±0.5%.
Stability: ±1% FS/yr.
Temperature Limits: 14 to 185°F (-10 to 85°C).
Pressure Limits: See Model chart on catalog page.
Power Requirements: 10 to 35 VDC (2-wire), 17 to 36 VDC, or isolated 21.6 to 33 VAC (3-wire).
Output Signal: 4 to 20 mA (2-wire), 0 to 5 VDC, or 0 to 10 VDC (3-wire).
Zero and Span Adjustments: Push buttons.
Loop Resistance: Current output: 0 to 1250 Ω max; Voltage output: Load resistance 1 kΩ (min).
Current Consumption: 40 mA (max).
Electrical Connections: 3-wire removable European style terminal block for 16 to 26 AWG.
Process Connections: Barbed, dual size to fit 1/8" and 3/16" (3.12 and 4.76 mm) ID rubber or vinyl tubing.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Any orientation.
Weight: Without LCD 8.8 oz (249 g); with LCD 9.6 oz (272 g).
Agency Approvals: CE.
