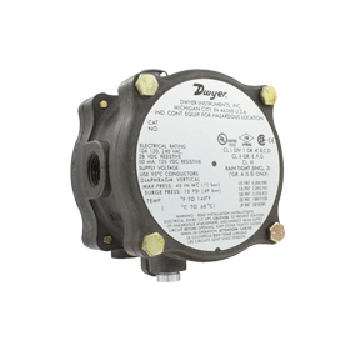

1950G系列防爆型微差压开关
产品说明：
防爆，全天候防护等级，可用于天然气
1950G系列防爆型微差压开关具有德威尔1950系列差压开关的所有最好性能，还可用于天然气的监测。它可以用于室外安装，并达到UL的防爆认证：Class I, Groups A, B, C, & D; Class II, Groups E, F, & G and Class III atmospheres, Directive 94/9/EC，还具备(ATEX) Compliant for CE ATEX II 2G Exd IIB+H T6, CSA & FM approved for Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G and Class III atmospheres IECEx Ex d IIB+H T6。它尺寸小，重量相当于常规防爆开关的一半。
打开铝制外壳的前盖板，很容易进行和单刀双掷继电器，电源进行接线。需要24 VDC, 120 或240 VAC电源，电路连接。开盖时，螺钉始终留在盖上，不会现场丢失。无需打开外壳就可以调整设定点。
产品规格:
Service: Air and compatible combustible gases.
Wetted Materials: Consult factory.
Temperature Limits: 0 to 140°F (-17 to 60°C). Note: Set point drift may occur with ambient temperature changes.
Pressure Limits: 45" w.c. (11.2 kPa) continuous; 10 psig (68.95 kPa) surge.
Enclosure Rating: NEMA 3 (IP54), NEMA 7 and 9.
Switch Type: 1 Form C relay (SPDT).
Electrical Rating: 10 A, 120/240 VAC, 28 VDC. Resistive 50 mA, 125 VDC.
Power Requirements: 24 VDC ±10%. 120 or 240 VAC ±10% optional.
Electrical Connections: Internal terminal block.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Screw type on top of housing.
Weight: 2 lbs 15.7 oz (1.35 kg).
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL.
