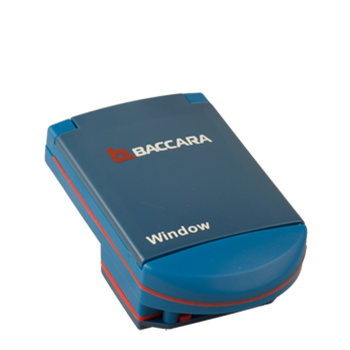

G75-C-1W & 1W+ | Irrigation window controller
Operating temp: -10° to 60°C
Options: Solar panel, charger, accurate clock
Battery: 9V alkaline battery included
Mounting: Horizontal, vertical, wall mounting
Temperature range -10º to 60ºC
Mounting
Various mounting options :
• Directly on a 28mm diameter solenoid in
horizontal or vertical position with adaptor
• Wall mounting with four screws
• Accessories provided
Electrical
Powered by single 9V alkaline battery; use
best quality to ensure at least one year's
autonomous operation.
• Back-up memory
• Low battery warning
• Power saving LCD
• Battery included
Solenoid
Both Window and Window+ controllers have
identical programming.
• Window : compatible with G75 4Ω latch
operator
• Window+ : has a stronger output to
operate G80 latch and GEM-SOL 'IL'
latch coils
Valve
• Window : can operate any valve equipped
with 3/4" UNEF solenoid cavity (Richdel®
type)
• Window+ : only with Baccara latch valve
Software • 24 hours real time clock
• See 'Programming key features' table
Options
• Solar panel
• Charger
• Accurate clock (low time drift)
Standard / Certification CE
Standard protection class • Dust and watertight
• IP67 and NEMA 4X
