Zero dead zone solenoid valve mixer distributor introduction

application:
“Zero Dead Zone Mixer/Distributor”
Application field
In many applications of medicine or biotechnology, different media or mixtures of several media must be added to the reactor or measurement chamber in a defined order. The switching between the dosing steps should be free of entrainment and flushing at each step.
Mechanical structure

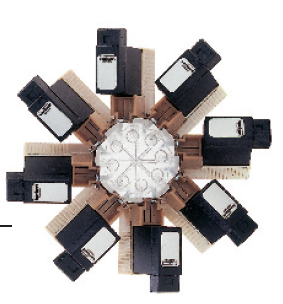

The eight valves for mixing or dispensing are arranged radially, with the same small connecting passage connecting the outlets around the central floor.
characteristic:
Suitable for neutral and corrosive gases and liquids
Pressure range from vacuum to 3bar
Working temperature 0-50 °C
Working power supply 24V DC
The minimum channel length is the same at all points
Internal volume (per channel) 5μl

UNF 10-32 interface
