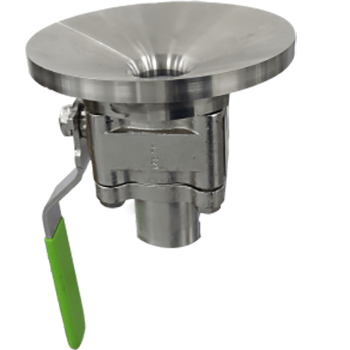

Flush Tank Valves R47X/R47P Series R48X/R48 Series

Flush Tank Valves R47X/R47P Series R48X/R48 Series

  • Habonim product products provide professional solutions for the most demanding industries
  • Oil, Gas, Chemical, Petrochemical, Pharmaceutical, Mining, Trunnion, Cryogenic, High Pressure
  • We create custom valves, manifolds and special solutions to meet the most stringent requirements of extreme temperature, high pressure, corrosive and abrasive applications
  • Product description: The Habonim Flush Tank range has all the benefits of the three-piece ball valve Series 47 and TuBore™ Series 48. The innovation of the flush tank valve is the geometric design of the pad, which become
  • INQUIRY
Technical overview
Size range ½" - 4" (DN15 - DN100)
Series Range R47 Series - Standard and Full Channel
R48 series - tube port
Pressure Range Vacuum 10-6 Tor up to 50 bar (700 psi)
Temperature range -60 °C to +260 °C (-76 °F to +500 °F)
Material Stainless steel A351 CF8M/CF3M, A479 316/316L, carbon steel A216 WCB/ A105,A350 LF2, alloy C22, alloy C276, duplex, super duplex, 254SMO, inconel 625, monel 400, titanium and more
Downstream end connection threaded, welded, flanged
Operation Lever or gear operation, pneumatic or electric
Applicable occasions Chemical, biopharma, cosmetics, food & beverage
 Compliance Standards
Factory Certification ISO 9001-2015 Quality Management System
Valve Design and Testing ANSI B16.34, ASME BPE, ISO 17292 Valve Design
ASME Boiler & pressure code, Section 8 - Division 1 Tank bottom flange
ANSI B1.20.1 NPT - National Pipe Taper Thread
EN 10226-1, ISO 7-1 , JIS B0203 BSPT-British Standard Tapered Pipe Thread
DIN 3852 BSPP
ANSI B16.11 , EN 12760 Socket Weld End Connections
ANSI B16.25 , EN12627-4 Butt Weld End Connections (Schedule 5, 10, 40, 80)
ANSI B16.5, EN 1092 Pt 1&2 Flange Dimensions Tri-Clamp
ANSI B16.10 , EN 558 Face to Face Dimensions
NACE MR-0175, ISO 15156-1/2/3 Grade for S-containing environments in H2 oil and gas production
Certification ISO 15848-1 Industrial Valves - Measurement, Testing and Qualification Procedures for Fugitive Emissions
PED 2014/68/EU Module H Pressure Equipment Directive
ATEX 2014/34/EU Equipment and protective systems for use in potentially explosive atmospheres (optional for actuators only) ((optional for actuators only))
IEC 61508-2 SIL 2/3 Safety Integrity Level - Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related Systems ((Optional for Execution Units only))
Document EN 10204 2.2 / 3.1 / 3.2 Metallic materials - Types of inspection documents
