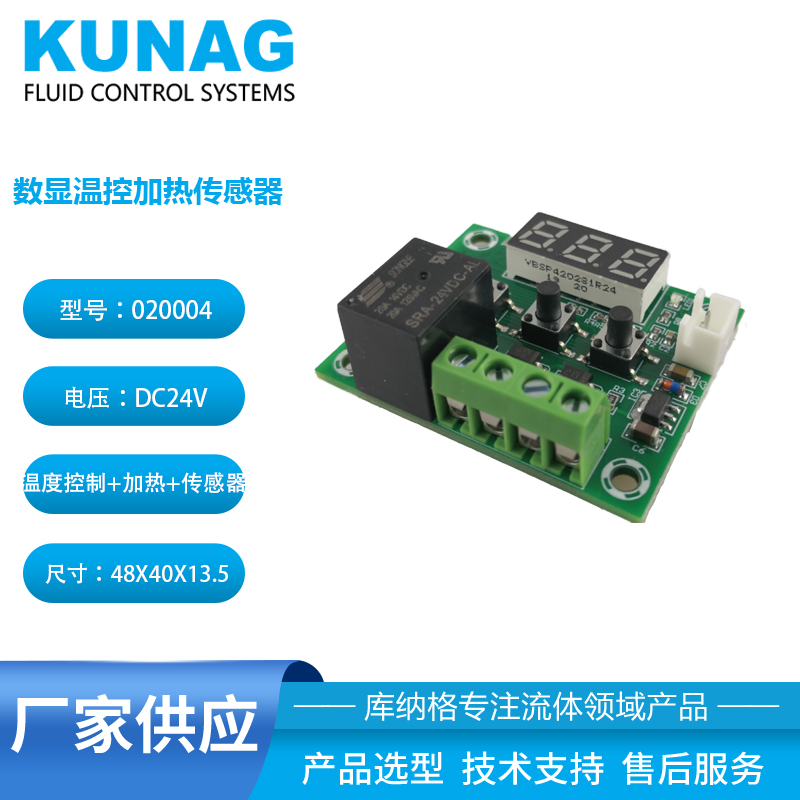

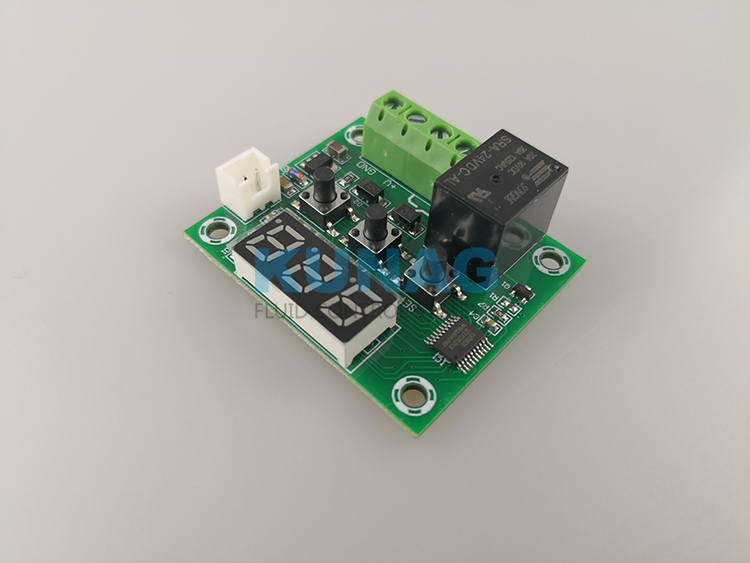

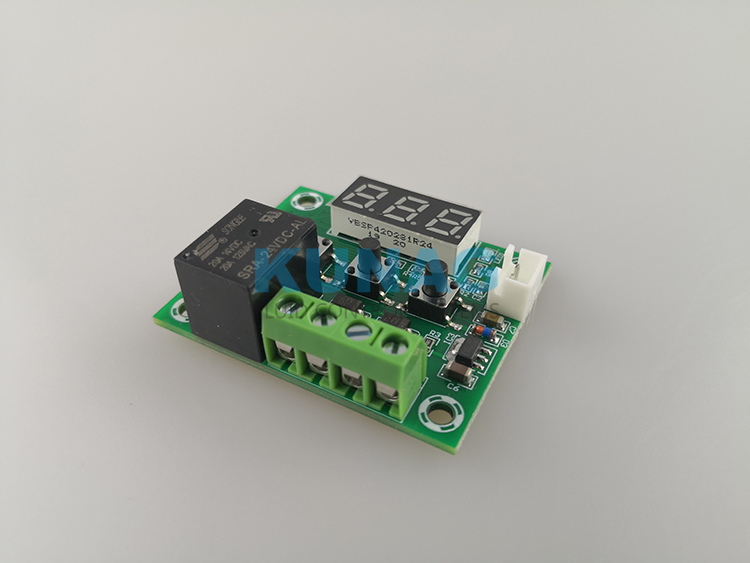

Independent temperature control chip Temperature sensor Heater power supply Controller Secondary ink cartridge

1. Technical parameters
Control range: -50~110℃
Resolution: -9.9~99.9, 0.1℃, other temperature range 1℃
Temperature measurement accuracy: 0.1℃
Control accuracy: 0.1℃
Backlash accuracy: 0.1℃
Refresh rate: 0.5S
High temperature alarm: 0-110℃
Input power: DC24V
Measurement input: NTC (10K 0.5%) waterproof sensor
Output: one 10A relay
Environmental requirements: -10~60℃, humidity 20%-85%
Specification size: 48*40mm
Power consumption of the whole machine: quiescent current: ≤35MA pull-in current: ≤65MA
2. How to use
Connect the power supply and load to power the controller. At this time, the display shows the measured temperature. Press the SET key once to display
The temperature on the display screen flashes, press +- to set the desired temperature, press SET once to confirm the return after setting, and then control
The relay will automatically switch on and off according to the setting!
The output of the thermostat is a 10A relay, which can meet various high-power loads. Please ensure that the wiring is correct

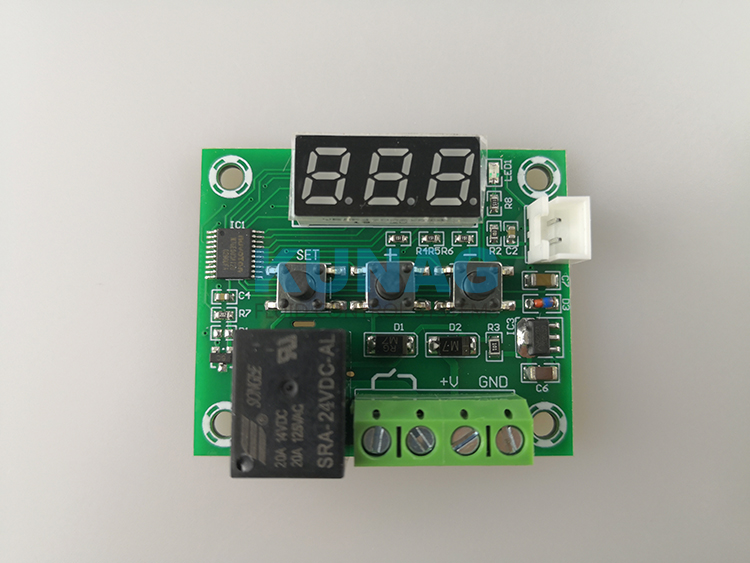

3. Status description of indicator light and digital tube
Indicator light: Off means that the relay is off, always on means that the relay is closed
Digital tube: display LLL for sensor open circuit: display HHH for exceeding the measuring range, the thermostat will forcibly disconnect the relay
Four, parameter function description
Long press SET for 5 seconds to enter the main menu setting, press +- to switch P0..P6 long press SET or 10 seconds without key action, the controller automatically confirms and returns
