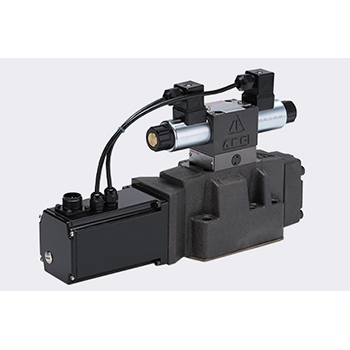

  • DPGKE-10 / 16/25/27/32/35 ultra-high response proportional directional valve (pilot operated) DOFLUID Dongfeng
DPGKE-10 / 16/25/27/32/35 ultra-high response proportional directional valve (pilot operated) DOFLUID Dongfeng

DPGKE-10 / 16/25/27/32/35 ultra-high response proportional directional valve (pilot operated) DOFLUID Dongfeng

  • Steel, petrochemical, paper, packaging, electricity, shipping, mining, food, feed and other industries
  • Hydraulic components Pneumatic components Electrical control components Instrumentation Industrial equipment Transmission equipment Safety protection
  • dofluid solenoid valve proportional valve directional valve safety valve control valve flow valve manifold valve differential pressure valve logic valve
  • Product description: DOFLUID acting as Dongfeng acting as DOFLUID electro-hydraulic proportional valve DOFLUID pressure valve DOFLUID directional valve DOFLUID solenoid valve ultra-high response proportional directional v
  • INQUIRY
Features:
1. Pilot control valve type DPGKE-6-3C40-D24 (1st stage) The pilot control valve is a direct-acting proportional valve. Design and optimize the control edge geometry as a pilot control valve of the proportional directional valve type DPGKE.
2. The proportional coil is a pressure-resistant and sealed oil-immersed DC coil with a detachable coil. They convert electrical current into mechanical force proportionally. The increase of the current strength will appropriately increase the coil force. The set coil force remains constant throughout the control stroke.
3. The pilot control valve is basically composed of a valve body (1), a proportional coil (2 and 3), a valve core (4) and a spring (5 and 6). In the event of a power failure, both actuator ports are connected to the tank. If one of the two coils (2 or 3) is de-energized, the coil force moves the spool (4) toward the spring (5 or 6). Once the cover area is crossed, the connection of one of the two actuator ports to the tank is blocked and a connection pressure chamber is established. Fluid flows from P to the control cavity of the main stage.
