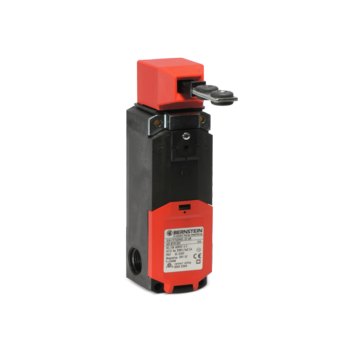

Chain plastic switch, SLK type
The self-locking function of the SLK safety position switch ensures that the safety gates, safety gates and other guards remain closed in the presence of a hazard.

select

Product advantages
With rotating head (4 x 90°) and horizontal and vertical operating directions for application flexibility
Compact design with an overall size of only 170mm
Innovative installation, port with spring
Interlocking device integrated on the switch housing
Locking principle
Spring force (closed current)
Magnetic force (working current)
Triple coded tamper resistant device

specification
Degree of protection IP 67
Two separate safety loops ensure reliable integration of overall product performance
Circuit 1 monitors the operating head through two contacts
Circuit 2 monitors the interlock function through two contacts
Two operating voltages for universal integration: 24 V AC / DC or 110 V / 230 V AC
Functional compliance with GS ET 19, EN 60 204-1, EN 60 947-1 and EN 60 947-5-1
Cable interface 3 x M20 x 1.5

select
AS-i models available
Pre-installed specified cables and interfaces according to customer requirements
